Description

TP-Link TL-MR100 300 Mbps Wireless N 4G LTE Router

With the TP-Link TL-MR100, you can enjoy 4G LTE sharing wherever you want

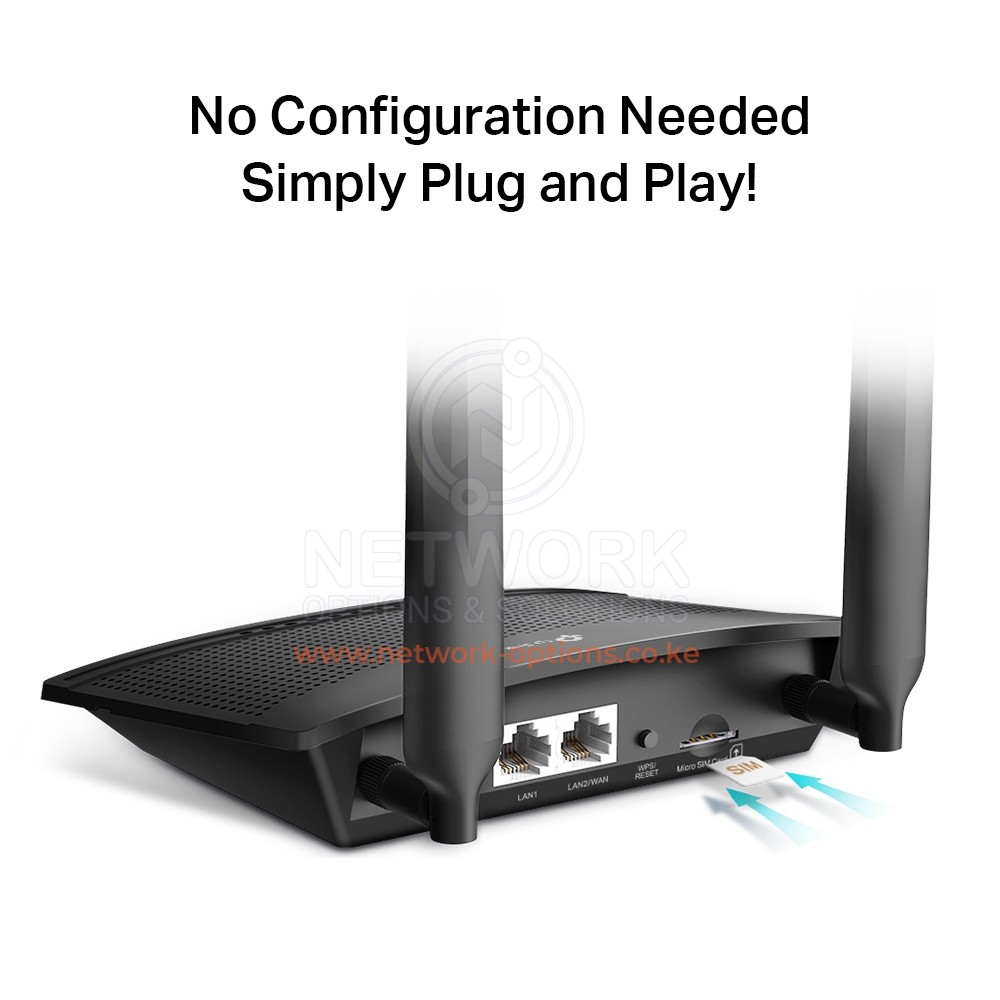

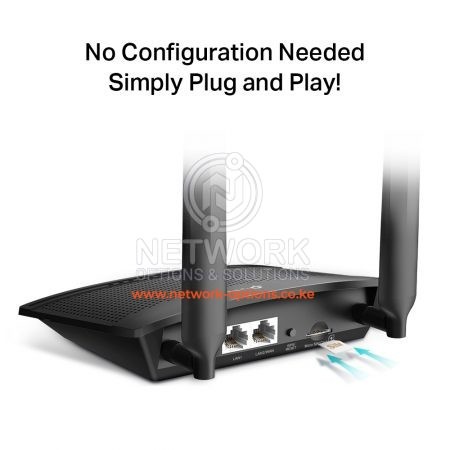

No Configuration Needed Simply Plug and Play!

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is inserting a micro SIM card and turning on the router. It has never been easier than enjoy a fast, stable Wi-Fi on 4G LTE network.
TP-Link TL-MR100 300Mbps Wireless N 4G LTE Router
Advanced Software Functions Help You Enhance Your Network Safety and Effectiveness
TP-Link TL-MR100 300Mbps Wireless N 4G LTE Router

Wi-Fi Where You Need It
Enjoy unconstrained convenience and versatility. MR100 has been tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.

TP-Link TL-MR100 300Mbps Wireless N 4G LTE Router
TP-Link TL-MR100 300Mbps Wireless N 4G LTE Router

Additional information
Brand

TP-Link

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “TP-Link TL-MR100”

Your email address will not be published. Required fields are marked *

SPECIFICATIONS

Specifications

HARDWARE FEATURES
Interface 1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot
Button WPS/Reset Button
External Power Supply(EU) 9V/0.85A
Dimensions ( W x D x H ) 6.06×4.49×1.42 in ( 154×114×36 mm)
Antenna 2 Detachable External 4G LTE Antennas
Antenna Type V3/APAC: 2 Internal 4G LTE Antennas V4/V2/V1: 2 Detachable 4G LTE Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n
Frequency 2.4 GHz
Signal Rate 300 Mbps
Reception Sensitivity 11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -68 dBm
Transmit Power < 20 dBm (2.4 GHz)
Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
WAN Failover Yes
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type 4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
SOFTWARE FEATURES
Security IPv4 SPI Firewall, IP and MAC Address Binding
Operating Modes 3G/4G Router, Wireless Router
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, NO-IP
Protocols IPv4, IPv6
Guest Network 2.4 GHz Guest Network
Administration Upgrade Firmware, Factory Default, System Log, Diagnostic Tools
OTHERS Certification CE, RoHS Package Contents 300 Mbps Wireless N 4G LTE TL-MR100 Power Adapter RJ45 Ethernet Cable Quick Installation Guide Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Micro SIM Card Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
