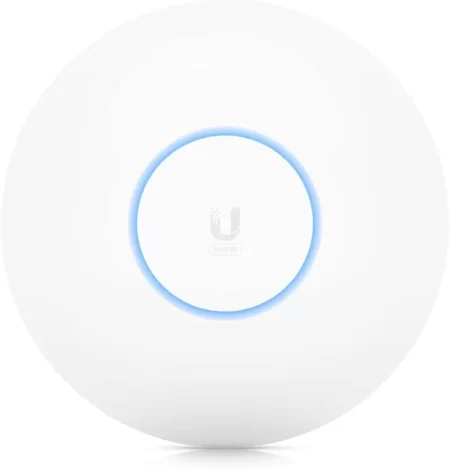

Ubiquiti UniFi Access Point WiFi 6 Pro (U6-PRO) is a high-performance wireless access point designed for indoor use. Here are some of the key features of this access point:
- Wi-Fi 6: The U6-PRO supports Wi-Fi 6 (802.11ax) technology, providing faster speeds, higher capacity, and improved efficiency compared to previous Wi-Fi standards.
- Dual-Band Connectivity: The access point supports both 2.4 GHz and 5 GHz bands, providing users with the flexibility to connect to the most appropriate band based on their devices and network conditions.
- MU-MIMO: The U6-PRO includes MU-MIMO (multi-user multiple input multiple output) technology, which allows multiple clients to receive data simultaneously, improving overall network efficiency.
Ubiquiti UniFi Access Point WiFi 6 Pro (U6-PRO) Key Features
- Dual-band WiFi 6 (802.11ax)
- 5 GHz (4×4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
- 2.4 GHz (2×2 MU-MIMO and OFDMA) band with a 573.5 Mbps throughput rate
- Operates at full 4×4 MIMO with 160 MHz bandwidth
- 300+ concurrent client capacity
- Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion
- Included universal mounting plate, backing plate, and screw kit
Ubiquiti UniFi Access Point WiFi 6 Pro (U6-PRO) – Technical Specifications
Mechanical
- Dimensions: Ø197 x 35 mm (Ø7.76 x 1.38″)
- Weight Without mount: 460 g (1.01 lb)
- With mount: 600 g (1.32 lb)
- Enclosure material: Plastic
- Mounting material: SGCC steel
- Weatherproofing: IP54
Hardware
- Management interfaces: Ethernet, Bluetooth
- Networking interface: (1) GbE RJ45 port
- Button: Factory reset
- LED*: White/blue
- Power method: 802.3at PoE+
- Power supply: UniFi PoE switch, 48V, 0.5A PoE adapter (not included)
- Supported voltage range: 44 to 57VDC
- Max. power consumption: 13W
- Max. TX power: 2.4 GHz, 22 dBm / 5 GHz, 26 dBm
- MIMO: 2.4 GHz, 2 x 2 (UL MU-MIMO) / 5 GHz, 4 x 4 (DL/UL MU-MIMO)
- Throughput rate: 2.4 GHz, 573.5 Mbps / 5 GHz, 4.8 Gbps
- Antenna gain: 2.4 GHz, 4 dBi / 5 GHz, 6 dBi
- Mounting: Wall/ceiling (included)
- Operating temperature: -30 to 60° C (-22 to 140° F)
- Operating humidity: 5 – 95% noncondensing
- Certifications: CE, FCC, IC
*Due to chip supply shortages, the U6 AP’s LED has been limited to only white and blue color modes.
Software
- WiFi standards: 802.11a/b/g
- WiFi: 4/WiFi 5/WiFi 6
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 300+
- Zero wait DFS: Yes*
*Supported with upcoming firmware versions
Supported Data Rates (MBPS)
- 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b 1, 2, 5.5, 11 Mbps
- 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
- 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
