Ubiquiti UniFi Dream Machine Access Point/Switch/Security Gateway – UDM
Ubiquiti UDM is the easiest way to introduce UniFi to homes and businesses. The UniFi Dream Machine includes everything you need for a small-scale wired or Wi-Fi network. It’s easy to use and still offers all the benefits of UniFi for homes and businesses.
Ubiquiti UDM Key Features
- High‐Performance Dual Band 802.11ac 4×4 Wave 2 AP
- Managed 4-Port Gigabit Switch
- Advanced Security Gateway with IDS/IPS and DPI
- UniFi Network Controller with Intuitive User Interface
- Scalable Through Additional UniFi Devices Connected to LAN
- Powered by Fast 1.7 GHz Quad-Core Processor

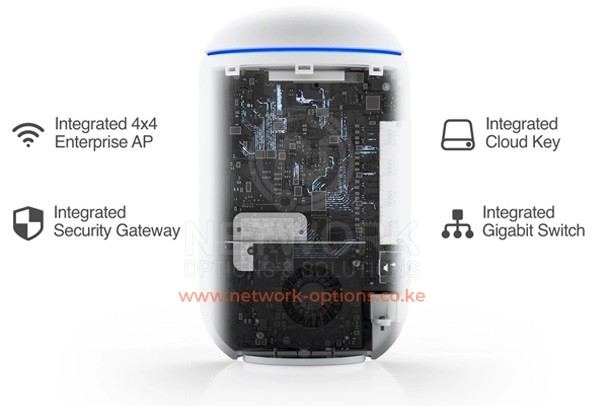

Powered by a fast 1.7GHz quad-core processor, the UniFi Dream Machine combines multiple functions into a single elegant device
High-Performance Antenna
802.11ac Wave 2 4×4 MU-MIMO for 5 GHz and 802.11n for 2.4 GHz
Advanced Security
Threat Management with IDS/IPS and DPI
Processor
ARM Cortex-A57 Quad-Core at 1.7 GHz
Ethernet Ports
5 GbE Ports: 1 WAN and 4 LAN
VLAN Support
Security and Traffic Management
Secure Communications
VPN Server
QOS
Enterprise VoIP
UniFi Network Controller with Intuitive User Interface
Centralised management software featuring a graphical user interface offers easy setup and convenient control.
Ubiquiti UDM Technical Specifications
Overview
- Dimensions: Ø 110 x 184.2 mm (Ø 4.33 x 7.25″)
- Weight: 1.05 kg (2.32 lb)

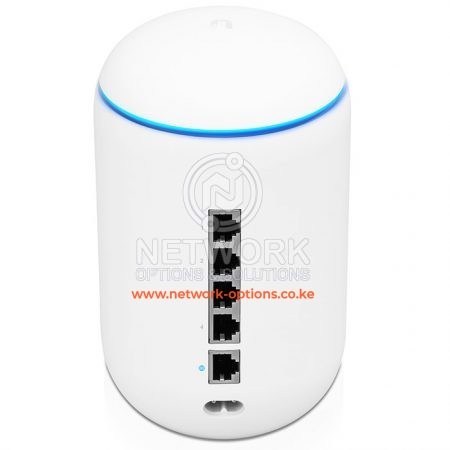

- Networking Interface:
– 4 x LAN 10/100/1000 RJ45 Ports
– 1 x WAN 10/100/1000 RJ45 Port - Button: Reset
- IDS/IPS Throughput: 1 Gbps
- Processor: Arm Cortex-A57 Quad-Core at 1.7 GHz
- System Memory: 2 GB DDR RAM
- On-Board Flash Storage: 16 GB
- Maximum Power Consumption: 26W
- Supported Voltage Range: 100 – 240VAC
- Power Method: AC Power Cord
- Power Supply: Internal AC/DC Power Adapter (24V, 0.6A, 100 – 240VAC)
- Power Save: Supported
- Beamforming: Supported
- TX Power:
– 2.4 GHz: 23 dBm
– 5 GHz: 26 dBm (Including antenna gain. Maximum TX power level may be limited by user’s country-specific regulations.) - Antenna: 1 x Dual-Band, Quad-Polarity Antenna
- Antenna Gain:
– 2.4 GHz: 3 dBi
– 5 GHz: 4.5 dBi - Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2
- Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
- BSSID: Up to 8 per Radio
- Operating Temperature: -10 to 45° C (14 to 113° F)
- Operating Humidity: 5 to 95% Noncondensing
- Certifications: CE, FCC, IC
Advanced Traffic Management
- VLAN: 802.1Q
- Advanced QoS: Per-User Rate Limiting
- Guest Traffic Isolation: Supported
- WMM: Voice, Video, Best Effort, and Background
Supported Data Rates (Mbps)
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
- 802.11ac:
– 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
– 58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160) - 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
