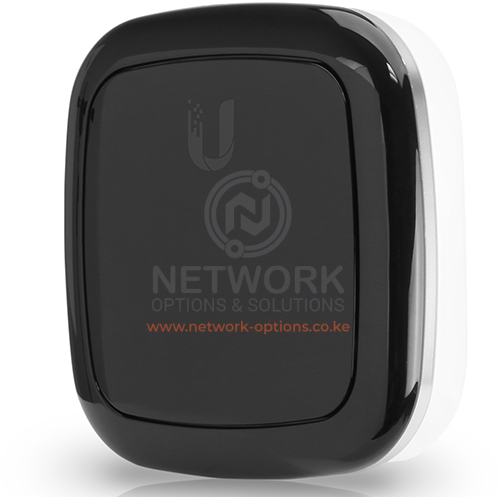

Ubiquiti UFiber Nano G GPON Gigabit Optical Network Unit (UF-Nano)

8,500.00 KSh +VAT

○ WAN: 1 x GPON Port
○ LAN: 1 x Gigabit Ethernet Port
○ Gigabit PoE Powered

Product Documents

Datasheet

Description

Ubiquiti UFiber UF-Nano G GPON Gigabit Passive Optical Network Unit

The Ubiquiti UFiber Nano (UF-Nano) is a fiber solutions utilizing Gigabit Passive Optical Network (GPON) technology. The UFiber UF-Nano G is a robust, high performance GPON CPE, which features an informational LED display and a sleek, sophisticated industrial design.

Ubiquiti UFiber UF-Nano G Key Features
○ WAN: (1) GPON Port
○ LAN: (1) Gigabit Ethernet Port
○ GPON Speeds: 2.488 Gbps Downstream (RX), 1.244 Gbps Upstream (TX)
○ Wavelengths: 1490 nm Downstream (RX), 1310 nm Upstream (TX)
○ Robust ONU CPE
○ Compatible with 3rd-Party OLTs
○ Gigabit PoE Powered

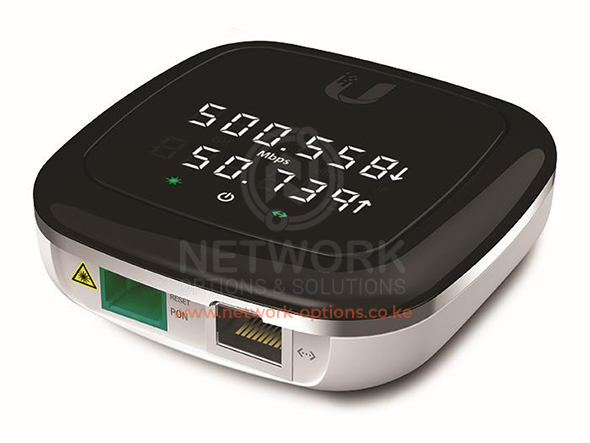

Status Display
The easy-to-read display provides status information: IP address, signal strength, and current throughput.
Ubiquiti UFiber UF-Nano G GPON in Kenya
Power over Ethernet
The Nano G is powered by 24V passive PoE – a single cable to carry both power and data.
Ubiquiti UFiber UF-Nano G GPON in Kenya
Designed for Integration
Up to 128 Nano G devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the Nano G integrates with the UFiber OLT and third-party OLT devices.
Ubiquiti UFiber UF-Nano G GPON in kenya


Ubiquiti UFiber UF-Nano – Technical Specifications

General

  • Dimensions: 77 x 77 x 28 mm (3.03 x 3.03 x 1.1″)
  • Weight: 110 g (3.88 oz)
  • Networking Interfaces:
    – (1) SC/APC, GPON WAN
    – (1) Gigabit RJ45, Ethernet LAN
  • Networking Interface Speeds:
    – (1) GPON WAN, ITU G.984: 2.488 Gbps Downstream, 1.244 Gbps Upstream
    – (1) GbE LAN: 10/100/1000 Mbps
  • Management Interface: In-Band Ethernet/PON
  • Normal Optical Power Range:
    – TX (Class B+): 1.5 to 5 dBm
    – RX: -28 to -8 dBm
  • Power Method:
    – Passive PoE (Pins +4, 5; -7, 8)
    – Dying Gasp Support
  • Power Supply: PoE Adapter: 24V, 0.3A (Included)
  • Max. Power Consumption: 7W
  • Supported Voltage Range: 20V to 28V
  • Processor Specs: MIPS32, 240 MHz
  • Memory Information: 128 MB DDR3
  • Buttons: (1) Display Information (1) Reset
  • Operating Temperature: -10 to 45° C (14 to 113° F)
  • Operating Humidity: 5 to 95% Noncondensing
  • Certifications: CE, FCC, IC
