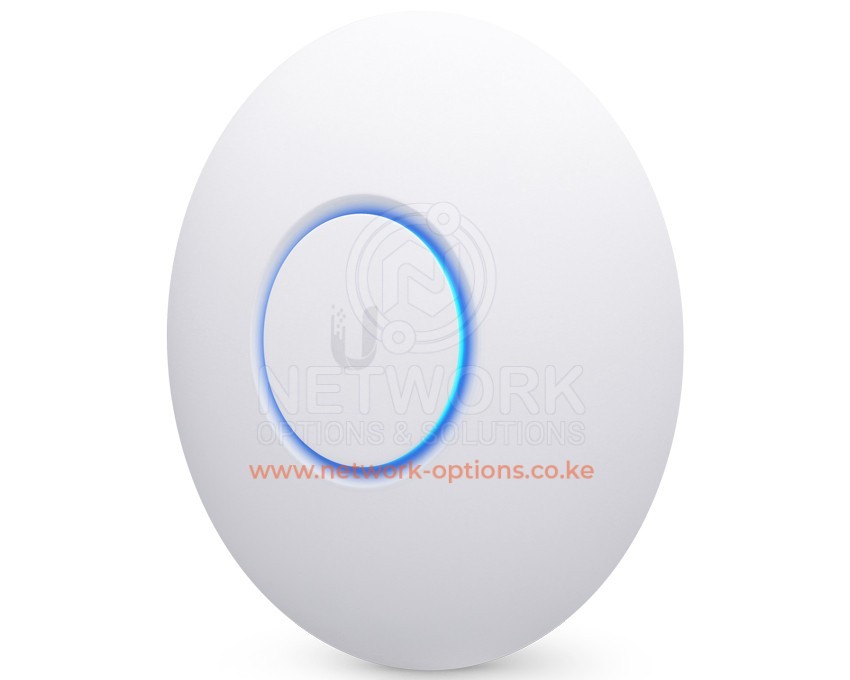

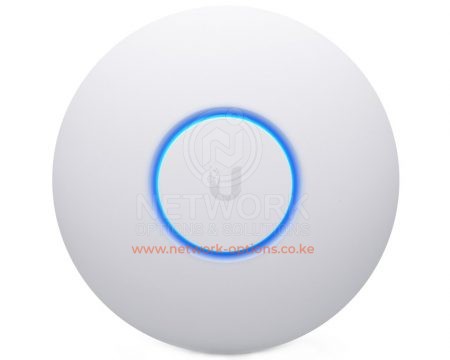

The Ubiquiti UniFi nanoHD AP features simultaneous, dual-band, 4×4 MU-MIMO technology and convenient 802.3af PoE compatibility. The compact design delivers a cost-effective combination of value and performance. The UniFi nanoHD AP can also be powered by an 802.3af PoE compliant switch.
Ubiquiti UniFi Nano HD Key Features
Small, Low-Profile Access Point
Four-Stream 802.11ac Wave 2 Technology
Supports 200+ Concurrent Users
Powered by 802.3af PoE
The Ubiquiti UniFi nanoHD AP features simultaneous, dual-band, 4×4 MU-MIMO technology and convenient 802.3af PoE compatibility. The compact design delivers a cost-effective combination of value and performance. The UniFi nanoHD AP can also be powered by an 802.3af PoE compliant switch.
Save Money and Save Time
UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of deploying the compact UniFi Cloud Key with built-in software.
Powerful Hardware
The UniFi nanoHD AP features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology.

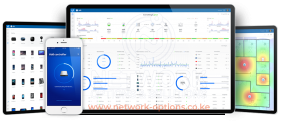

Intuitive UniFi Controller Software
Configure and manage your APs with the easy-to-learn user interface.
Expandable Unlimited scalability
Build wireless networks as big or small as needed. Start with one (or upgrade to a five‑pack) and expand to thousands while maintaining a single unified management system.
Powered by Software Defined Networking
Easily deploy your UniFi Enterprise System using the included UniFi Controller software. Manage thousands of UniFi devices across multiple sites, and scale your network as needed without any ongoing licensing fees.
Custom Skins
Coming Soon – Optional skins (sold separately) allow the UniFi nanoHD AP to blend into its surroundings.
Ubiquiti UniFi Nano HD – Technical Specifications
General
Dimensions 160 x 160 x 32.65 mm (6.30 x 6.30 x 1.29″)
Weight 300 g (10.6 oz)
Weight With Mounting Kits 315 g (11.1 oz)
Networking Interface (1) 10/100/1000 Ethernet Port
Buttons Reset
Power Method 802.3af PoE
Power Supply UniFi Switch (PoE)
Maximum Power Consumption 10.5W
Supported Voltage Range 44 to 57VDC
TX Power
2.4 GHz = 23 dBm
5 GHz = 26 dBm
MIMO
2.4 GHz – 2×2
5 GHz – 4×4
Radio Rates
2.4 GHz – 300 Mbps
5 GHz – 1733 Mbps
Antennas
2.4 GHz – 2.8 dBi
5 GHz – 3 dBi
Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID 8 per Radio
UAP-nanoHD | UAP-AC-PRO | UAP-HD | |
---|---|---|---|
Dimensions | ∅ 160 x 32.65 mm | ∅ 196.7 x 35 mm | ∅ 220 x 48.1 mm |
Environment | Indoor | Indoor/Outdoor | Indoor/Outdoor |
2.4 GHz Speed | 300 Mbps | 450 Mbps | 800 Mbps |
5 GHz Speed | 1733 Mbps | 1300 Mbps | 1733 Mbps |
PoE Mode | 802.3af PoE | 802.3af PoE/802.3at PoE+ | 802.3at PoE+ |
Ports | (1) 10/100/1000 Ethernet | (2) 10/100/1000 Ethernet | (2) 10/100/1000 Ethernet |
Wi-Fi Users | 200+ Users | 200+ Users | 500+ Users |
Mounting | Wall / Low-Profile Ceiling | Wall / Ceiling | Wall / Ceiling |
MIMO Chains | 4×4 | 3×3 | 4×4 |
MU-MIMO | Yes | No | Yes |
Skins | Yes | No | No |
