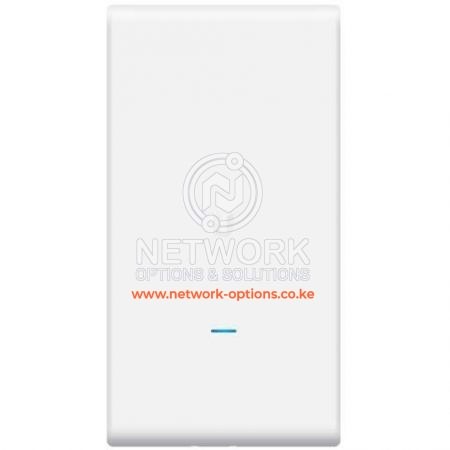

Ubiquiti UAP-AC-M-PRO is the pro version of their mesh access points. It can provide coverage to large outdoor areas, such as a park, using a mesh network comprised of mesh access points. This UAP-AC-M-PRO is ideal for applications requiring 3×3 MIMO data rates for close-in omni coverage. The nature of these devices allows for quick outdoor installations and takedowns, without needing prior infrastructure.
Product Features
• Weather-Resistant Form Factor: The enclosure of the UniFi AC Mesh Pro AP is designed to withstand the elements, making it deal for outdoor deployment.
• LED: Unique provisioning LED provides administrator location tracking and alerts for each device.
• Powerful Coverage: Built-in dual-band omnidirectional antennas deliver expanded range coverage outdoors.
• Mounting Flexibility: The UniFi AC Mesh Pro AP can be mounted on a wall or pole. (all accessories are included).
• Dual Gigabit Ethernet Ports: The primary port is for data and PoE; the secondary port is for bridging.
• Multiple Power Options: You can power the UniFi AC Mesh Pro AP with an 802.3af compatible switch, UniFi PoE Switch, or the included Gigabit PoE adapter. We recommend powering your UniFi devices with a UniFi PoE Switch.
Product Specifications
• Dimensions: 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37 “)
• Weight: 633 g (1.40 lbs)
• Networking Interface: (2) 10/100/1000 Ethernet Ports
• Buttons: Reset
• Power Method: 802.3af PoE (Supported Voltage Range: 44 to 57 VDC)
• Power Supply: 48V, 0.5A PoE Gigabit Adapter (Included)
• Maximum Power Consumption: 9 W
• Maximum TX Power:
2.4 GHz: 22 dBm
5 GHz: 22 dBm
• Antennas: (3) Internal Dual-Band Antennas, 8 dBi
• Wi-Fi Standards: 802.11a/b/g/n/ac
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• BSSID: Up to Four per Radio
• Mounting: Wall/Pole (Pole Kit Included)
• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC
Advanced Traffic Management
• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort, and Background
• Concurrent Clients: 200+’
Supported Data Rates (Mbps)
• 802.11ac: 6.5 to 1300 Mbps (MCS0 – MCS9 NSS1/2/3/, VHT 20/40/80)
• 802.11n: 6.5 to 450 Mbps (MCS0 – MCS23, HT 20/40)
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
Product Includes:
• (1) UniFi AP Mesh Pro
• (1) Mounting Bracket
• (2) Pole Clamps
• (4) Carriage Bolts
• (4) Flange Nuts
• (4) Screws
• (4) Screw Anchors
• (1) Gigabit PoE Adapter (48V, 0.5A)
• (1) Power Cord
• (1) Quick Start Guide
