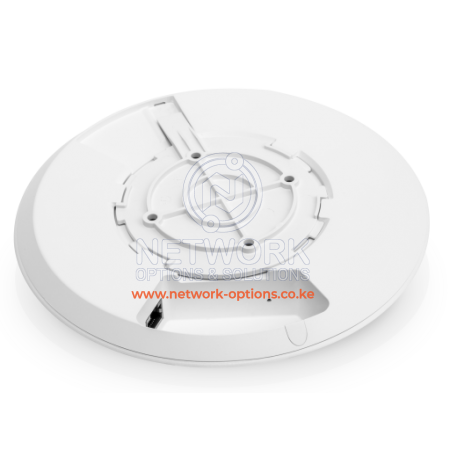

Ubiquiti UniFi UAP-AC-LR Indoor Access Point

20,500.00 KSh +VAT

The Ubiquiti UniFi AP AC LR is ideal for long-range deployments, offering simultaneous, dual-band operation with 3×3 MIMO in the 2.4 GHz band and 2×2 MIMO in the 5 GHz band. The innovative antenna design of the UAP-AC-LR provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.

Resources

UAP-AC-LR

Description

Manufacturer: Ubiquiti
Model: UAP-AC-LR

Ubiquiti UniFi AC LR Key Features

  • Range of 183m (600ft)
  • 802.11ac
  • Simultaneous dual-band
  • 2.4GHz throughput of 450Mbps
  • 5GHz throughput of 867Mbps
  • 1 Gigabit Ethernet Port

The UniFi AC-Long Range combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual‑Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware.

The UAP-AC-LR is easily accessible through any standard web browser, and the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated. UniFi

Unlike traditional enterprise Wi-Fi systems that use a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.

The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology. Intuitive UniFi Controller Software Configure and manage your APs with the easy-to-learn user interface. Build wireless networks as big or small as needed. Start with one (or upgrade to a three‑pack) and expand to thousands while maintaining a single unified management system.


Ubiquiti UniFi AC LR – Technical Specifications

  • Dimensions 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70″)
  • Weight 240 g (8.5 oz) With Mounting Kits 315 g (11.1 oz)
  • Networking Interface (1) 10/100/1000 Ethernet Port
  • Buttons Reset
  • Antennas (1) Dual-Band Antenna, Tri-Polarity, 3 dBi
  • Wi-Fi Standards 802.11 a/b/g/n/ac
  • Power Method Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
  • Power Supply 24V, 0.5A Gigabit PoE Adapter*
  • Maximum Power Consumption 6.5W
  • Maximum TX Power 2.4 GHz 22 dBm 5 GHz 24 dBm
  • BSSID Up to Four per Radio
  • Power Save Supported
  • Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • Certifications CE, FCC, IC
  • Mounting Wall/Ceiling (Kits Included)
  • Operating Temperature -10 to 70° C (14 to 158° F)
  • Operating Humidity 5 to 95% Noncondensing

Downloads
Unifi AC APs Datasheet
