Ubiquiti UniFi AC EDU Key Features
- WiFi Connected Speaker
- 802.11ac
- 3×3 MIMO
- Simultaneous dual-band
- 2.4GHz throughput of 450Mbps
- 5GHz throughput of 1300Mbps
- 1 Gigabit Ethernet Port

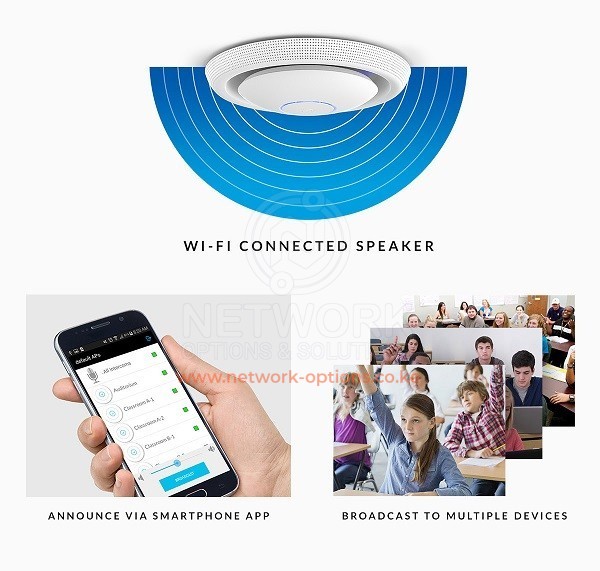

The UAP-AC-EDU is ideally suited for indoor deployments with a range of 122m (400ft). Announcements can be broadcast from an Android or iOS based device using the UniFi Broadcast App.
[av_image src=’https://www.network-options.co.ke/stage/wp-content/uploads/2017/03/unifi-wi-fi-speaker-small-300×94.jpg’ attachment=’1819′ attachment_size=’medium’ align=’center’ animation=’no-animation’ styling=” hover=’av-hover-grow’ link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’][/av_image]
The UniFi AC-EDU combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual‑Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware.
The UAP-AC-EDU is easily accessible through any standard web browser, and the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated. UniFi
Unlike traditional enterprise Wi-Fi systems that use a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.
The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology. Intuitive UniFi Controller Software Configure and manage your APs with the easy-to-learn user interface. Build wireless networks as big or small as needed. Start with one (or upgrade to a three‑pack) and expand to thousands while maintaining a single unified management system.
| UAP AC EDU | |
|---|---|
| Dimensions | 287.5 x 287.5 x 125.9 mm (11.32 x 11.32 x 4.96″) |
| Weight | 1.820 kg (4.012 lb) |
| Networking Interface | Dual-Band Wi-Fi / Gigabit Ethernet |
| Ports | (2) 10/100/1000 Ethernet Ports (1) USB 2.0 Port |
| Buttons | Reset |
| Antennas | (3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Power Method | Passive Power over Ethernet (48V), 803.2at Supported (Supported |
| Voltage Range | 44 to 57VDC) |
| Power Supply | 48V, 0.5A PoE Gigabit Adapter* |
| Maximum Power Consumption | 20W |
| Max TX Power | 2.4 GHz: 22 dBm; 5 GHz: 22 dBm |
| BSSID | Up to Four per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 200+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |

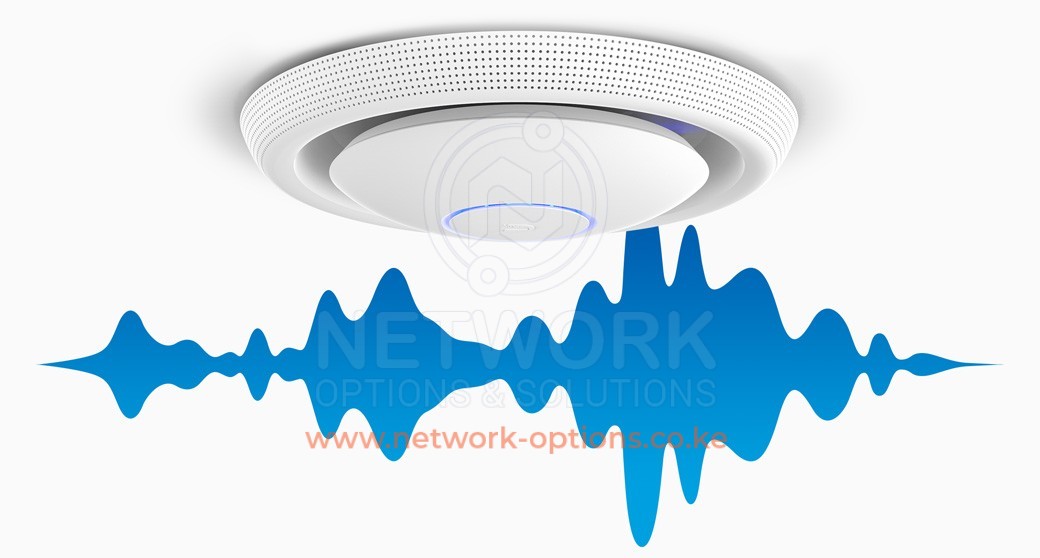

| Loudspeaker Acoustics | |
| Sensitivity | 94 dB (1W/1 m) |
| Maximum SPL | 103 dB @ 1 m |
| Frequency Response | 100 – 20,000 Hz |
| Type | Two-Way Speaker with Second-Order HP Filter |
