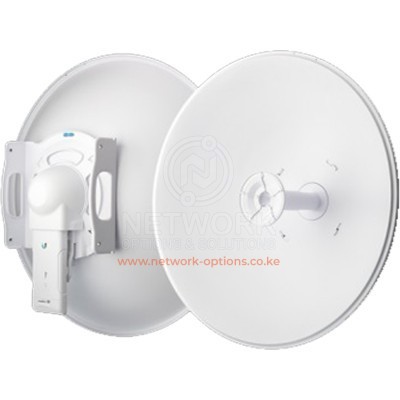

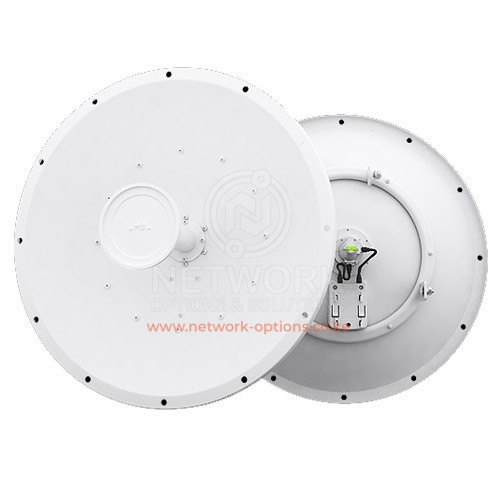

Antenna RocketDish 5 GHz Duplex MIMO, 30 dBi, 2x N/female, dual polarization, including accessories.Bi-polarization 30 dBi antenna unit suitable for Rocket M5 (MIMO). It uses horizontal and vertical polarization, which replaces two separate antennas and save as your costs associated with hiring location antennas.The antenna is suitable for simple creation of PtP connections. It is supplied with waterproof accessories for interfacing with the unit Rocket M.
The 5 GHz frequency band is free to use, worldwide, offers plentiful spectrum, and works well for long-distance links. However, 5 GHz signals have more difficulty passing through obstacles than lower-frequency signals. The 4.9 GHz frequency band typically requires a license and is reserved for public safety applications.
Specification
- Dimensions : 650 x 650 x 304 mm (25.6 x 25.6 x 11.97″)
- Frequency Range : 4.9 – 5.8 GHz
- Weight: 9.8 kg (21.61 lb)
- Gain: 4.9 GHz: 26 dBi 5 – 5.9 GHz: 30 dBi
- HPOL Beamwidth: 5° (3 dB)
- VPOL Beamwidth : 5° (3 dB)
- F/B Ratio : 34 dB
- Wind Loading : 787 N @ 200 km/h (177 lbf @125 mph)
- Wind Survivability : 200 km/h (125 mph)
- polarization : Dual-Linear
- Cross-pol Isolation : 35 dB Min
- ETSI Specification : EN 302 326 DN2
- Mounting : Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
