Ubiquiti R5AC Lite Rocket 5 ac Lite
The Ubiquiti Rocket 5 ac Lite is an ac radio that is built with high performance and ease of installation in mind. The Ubiquiti R5AC-LITE offers the freedom to deploy anywhere in the world, and it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).
Ubiquiti Rocket 5 ac Lite Key Features
○ Frequency – Full-Band 5 GHz
○ Throughput – 450+ Mbps
○ Ports – (1) 10/100/1000 Ethernet
○ Plug and Play Integration with RocketDish Antennas

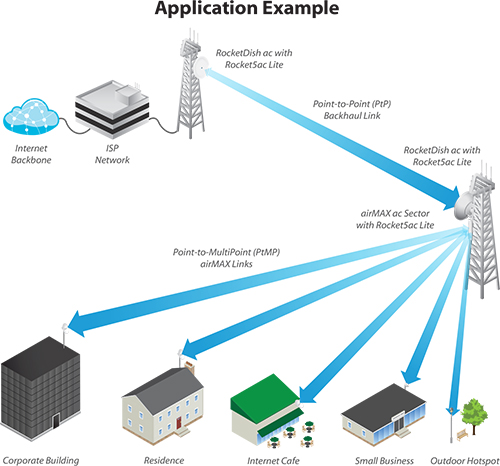

The Ubiquiti Rocket 5 ac Lite radio can be paired with a RocketDish antenna to create the endpoint of a high-performance, Point-to-Point (PtP) backhaul.
General
- Dimensions 162 x 84 x 37 mm (6.38 x 3.31 x 1.46″)
- Weight 250 g (8.81 oz)
- Enclosure Characteristics Outdoor UV Stabilised Plastic
- Processor Atheros MIPS 74Kc, 720 MHz
- Memory 128 MB DDR2 SDRAM, 16 MB NOR FLASH
- Networking Interface (1) 10/100/1000 Mbps
- RF Connections (2) RP-SMA (Waterproof)
- LEDs Power, Ethernet, (4) Signal Strength
- Max. Power Consumption 8.5W
- Power Supply 24V, 0.5A Gigabit PoE Adapter
- Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
- ESD/EMP Protection ± 24KV Air / Contact
- Operating Temperature -40 to 80° C (-40 to 176° F)
- Operating Humidity 5 to 95% Noncondensing
- Shock and Vibration ETSI300-019-1.4
R5AC Lite Software Information
- Modes Access Point, Station
- Services Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
- Utilities Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
- Distance Adjustment Dynamic Ack and Ackless Mode
- Power Adjustment Software Adjustable UI or CLI
- Security WPA2 AES Only
- QoS Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
- Statistical Reporting Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
- Channel Sizes
PtP Mode 10/20/30/40/50/60/80 MHz
PtMP Mode 10/20/30/40 MHz - Other Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM,
- Ubiquiti Specific Features 30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
R5AC Lite Compliance
- Wireless Approvals FCC, IC, CE
- RoHS Compliance Yes
R5AC-PTP Operating Frequency
- Operating Frequency
Worldwide: 5150 – 5875 MHz
USA: 5725 – 5850 MHz
Output Power 27 dBm
