Ubiquiti PRISMStation AC PS-5AC

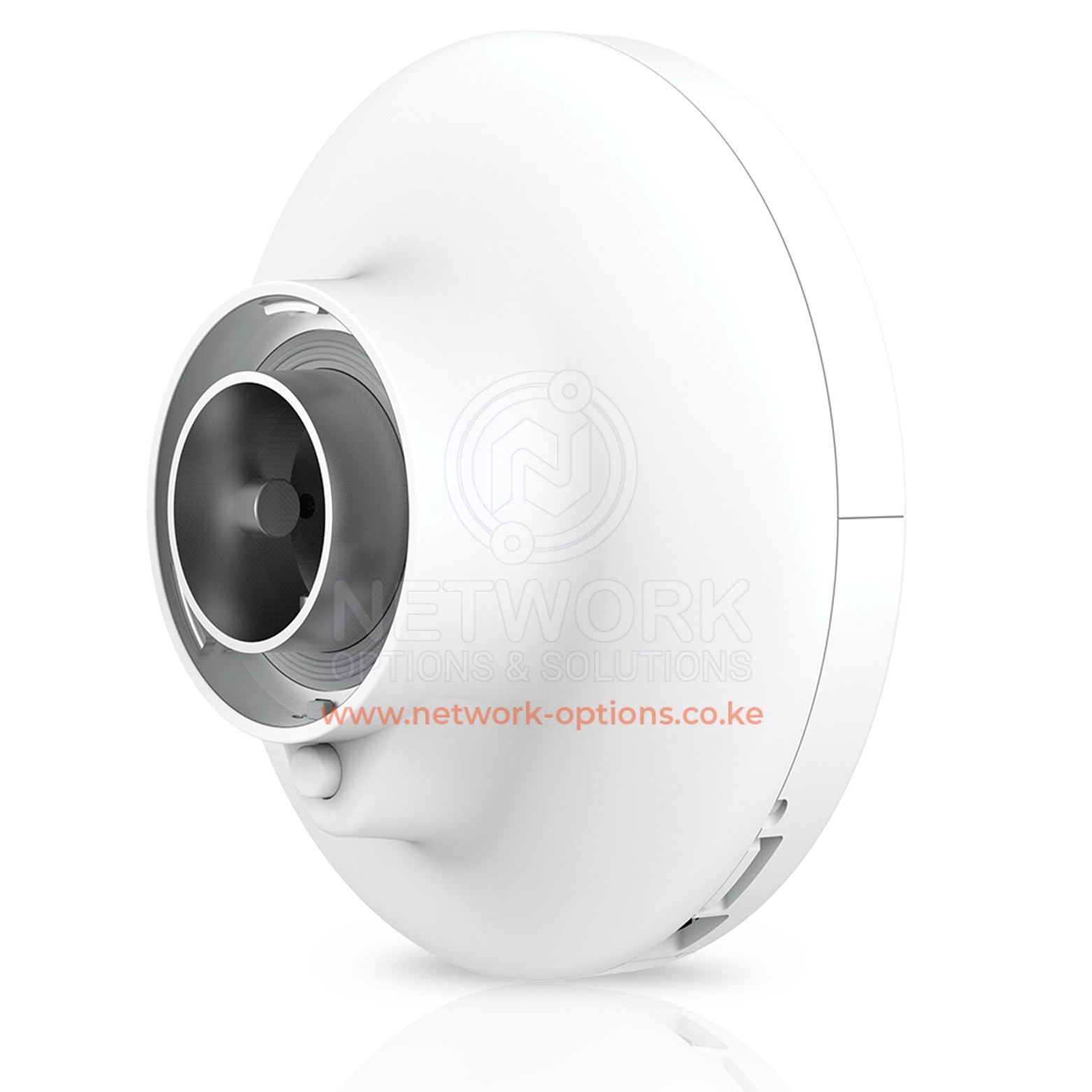

Ubiquiti PRISMStation AC Shielded airMAX ac BaseStation with airPrism Technology – PS-5AC

The Ubiquiti PrismStation 5AC combines airPrism technology with dedicated Wi-Fi management. The PrismStation 5AC directs RF energy in a tighter beamwidth using one of these compatible antennas:

• Horn-5-30
• Horn-5-45
• Horn-5-60
• Horn-5-90
• U-OMT-Dish

With the focus in one direction, the PrismStation 5AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Modular Design

The interchangeable antenna improves beam‑shaping for specific deployment needs.

Scalability

Horn antennas increase co-location performance without sacrificing gain.Symmetrical horn antennas (30°model: Horn-5-30 and 45° model:Horn-5-45) offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

Asymmetrical horn antennas (60°model: Horn-5-60 and 90° model:Horn-5-90) have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation.Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Extended Performance

A robust dish antenna, model U-OMT-Dish, offers excellent beam directivity with 27 dBi of gain. It can be paired with the PrismStation 5ACto extend radio performance for a greater number of WISP customers.Providing high throughput and an innovative form factor, the PrismStation 5AC is versatile and cost-effective to deploy. It also uses the latest ESD protection to help protect against power surges.
