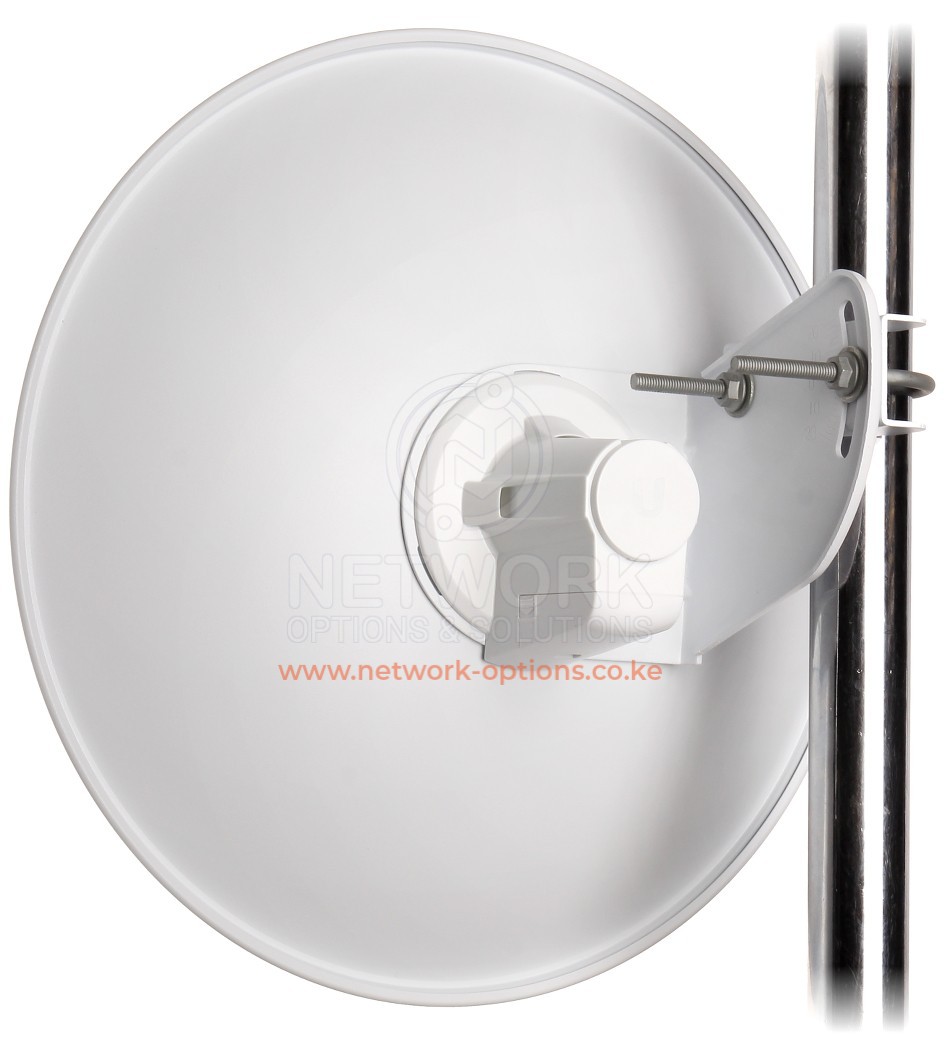

Ubiquiti PowerBeam PBE-M5-300

11,500.00 KSh +VAT

The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved.

Resources

Manufacturer: Ubiquiti
PowerBeam Models: PBE-M5-300

Improved Noise Immunity: The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved.
Integrated design: Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance
because it eliminates cable losses.

Software
airOS: is an intuitive, versatile, highly developed Ubiquiti firmware technology. It
is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture which enables hi-performance outdoor multipoint networking.
irView: Integrated on all Ubiquiti M products, airView provides Advanced Spectrum
Analyzer Functionality: Waterfall, waveform, and real-time spectral views allow
operators to identify noise signatures and plan their networks to minimize noise
interference.
airControl: is a powerful and intuitive web based server network management application which allows operators to centrally manage entire networks of Ubiqutii devices.

Accessories
IsoBeam: The IsoBeam TM is an isolator radome that is available as an optional accessory for the PBE‐M5-620 and other models:

airFiber® AF‐5G30‐S45
PowerBeam PBE-5AC-620
RocketDish TM RD-5G30-LW

The innovative RF‐choke perimeter of the IsoBeam delivers superior noise immunity in co-location deployments; its perimeter corrugation provides enhanced RF shielding.
Precision Alignment Kit: he Precision Alignment Kit is available as an optional accessory for the PBE‐M5‐620. It features 15° of azimuth adjustment and 15° of elevation adjustment to enable extremely accurate aiming for optimal PtP link
performance.
The Precision Alignment Kit is also compatible with other dish antennas:

airFiber AF-5G30-S45
PowerBeam PBE-5AC-620
RocketDish RD-5G30-LW

Device Specification
Dimensions: 325 x 325 x 256 mm (12.80 x 12.80 x 10.08″)
Weight: 1.203 kg (2.65 lb)
Power Supply: 24V, 0.5A PoE
Max. Power Consumption: 6W
Operating Frequency: 5150 – 5875 MHz
Gain: 22 dBi
Networking Interface: (1) 10/100 Ethernet Port
Processor Specs: Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2, 8 MB Flash
LEDs: (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR: 1.5:1
Channel Sizes: 5/8/10/20/30/40 MHz
Polarization: Dual Linear
Enclosure: Outdoor UV Stabilized Plastic
Mounting: Pole-Mount (Kit Included)
Wind Loading: 145.2 N @ 120 km/h (33 lbf @ 75 mph)
Wind Survivability: 120 km/h (75 mph)
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Wireless Approvals: FCC, IC, CE
RoHS Compliance: Yes
Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test: IEC 68-2-6
Temperature Shock Test: IEC 68-2-14
UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
