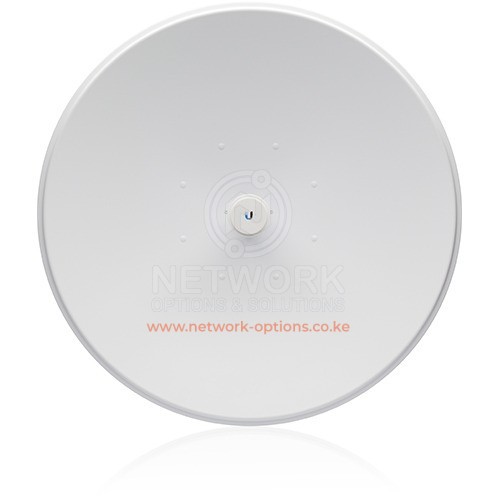

Ubiquiti airMAX PowerBeam PBE-5AC-620 802.11ac Bridge

38,000.00 KSh +VAT

The PBE-5AC-620 has a dish reflector design with proprietary airMAX ac technology that offers improved latency, noise immunity, scalability, and significantly increased throughput performance of up to 450 Mb/s and also offers wide range of 19 mi (30 km).

Resources

PBE-5AC-620

Out of stock

Description

The Ubiquiti PowerBeam AC 620 has excellent features such as improved noise immunity, innovative mechanical design as well as 5 GHz frequency and throughput. The ability to block and filter out noise is perfect for crowded areas with other RF signals of the same or similar frequency.

PowerBeam AC PBE-5AC-620 Key Features

  • Frequency: 5 GHz
  • Throughput: 450+ Mbps
  • Range: 30+ km
  • Uniform Beamwidth Maximizes Noise Immunity
  • Innovative Mechanical Design
  • High-Speed Processor for Superior Performance

Incorporating a dish reflector design with proprietary airMAX ac technology, the PowerBeam AC 620 is ideal for CPE deployments requiring maximum performance as it directs RF energy through a tighter beamwidth.

InnerFeed Technology
Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. This feature, coupled with its high-performance and innovative mechanical design, makes the PowerBeam AC PBE-5AC-620 versatile and cost-effective to deploy.


Ubiquiti PowerBeam AC PBE-5AC-620 – Technical Specifications
System and Regulatory/Compliance

  • Processor Specs Atheros MIPS 74Kc, 720 MHz
  • Memory 128 MB DDR2, 8 MB Flash
  • Networking Interface (1) 10/100/1000 Ethernet Port
  • Wireless Approvals FCC, IC, CE
  • RoHS Compliance Yes

Physical/Electrical/Environmental

  • Dimensions: 620 x 620 x 386 mm (24.41 x 24.41 x 15.2″)
  • Weight: 6.4 kg (14.11 lb)
  • Power Supply: 24V, 0.5A Gigabit PoE
  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Max. Power Consumption: 8.5W
  • Gain: 29 dBi
  • Operating Frequency: Worldwide (5150 – 5875 MHz), USA (5725 – 5850 MHz)
  • Wind Loading: 872 N @200 km/h (196 lbf @125 mph)
  • Wind Survivability: 200 km/h (125 mph)
  • LEDs: (1) Power, (1) LAN, (4) WLAN
  • Signal Strength: LEDs Software-Adjustable to Correspond to Custom RSSI Levels
  • Channel sizes: PtP Mode (10/20/30/40/50/60/80 MHz, PtMP Mode (10/20/30/40 MHz)
  • Polarisation: Dual Linear
  • Enclosure: Outdoor UV Stabilised Plastic
  • Mounting: Pole-Mount Kit Included
  • ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
  • Operating Temperature: -40 to 70° C (-40 to 158° F)
  • Operating Humidity: 5 to 95% Non-Condensing
  • Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
  • Vibration Test: IEC 68-2-6
  • Temperature Shock Test: IEC 68-2-14
  • UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
  • Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
