Ubiquiti LTU Lite 5 GHz PtMP LTU Client Radio (LTU-LITE)

Ubiquiti LTU Lite 5 GHz PtMP LTU Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation.(LTU-Lite)

The Ubiquiti LTU-LITE is a 5 GHz radio with an integrated antenna design for use as a PtMP CPE.

LTU technology breaks through the limitations of 802.11 Wi-Fi technology and supports 1024 QAM for superior performance.

Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.

Ubiquiti LTU-LITE Key Features
○ Proprietary Ubiquiti LTU Processor
○ 13 dBi Integrated Antenna
○ 10/20/30/40/50 MHz Channel Width Flexibility
○ PtMP CPE
○ 1024 QAM
○ Central configuration management from AP side
○ Frequency split
○ Auto power adjustments
○ Router mode support

• Proprietary LTU Technology
  Based on Ubiquiti’s LTU technology, this radio is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps1 of real TCP/IP throughput and modulation rates of up to 4096QAM.
• CPE Modes
  The device supports both bridged and built-in hardware NAT router modes to suit your specific deployment.
• Frequency Split
  The LTU Lite can use different frequencies for TX and RX to avoid interference.
• Convenient Mount Options

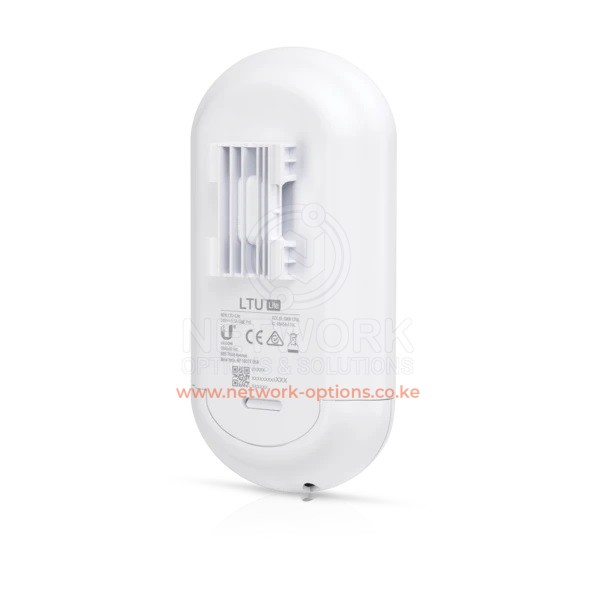

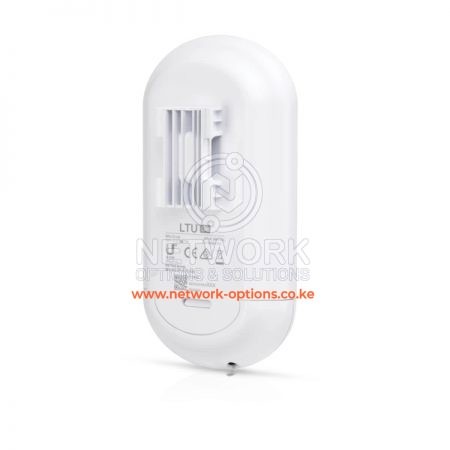

  The LTU Lite is designed for quick yet reliable mounting on a pole or on a wall. All necessary mounting hardware is included.
