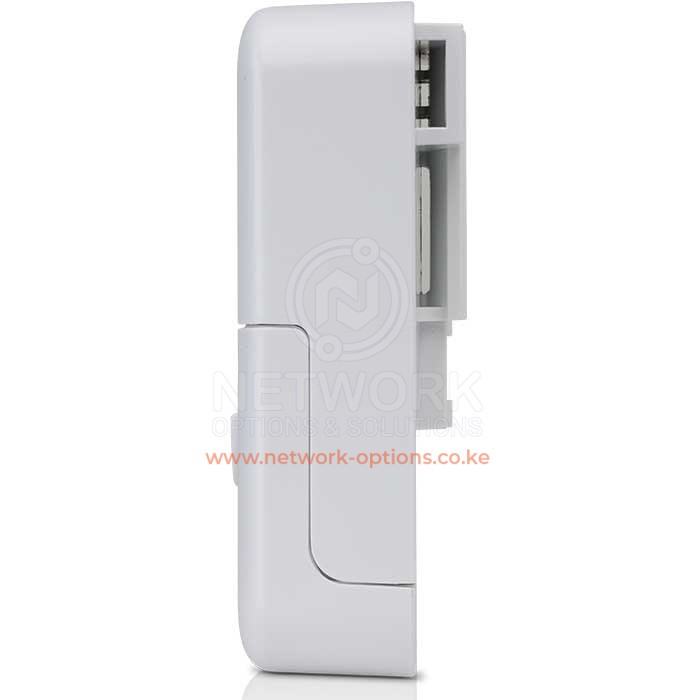

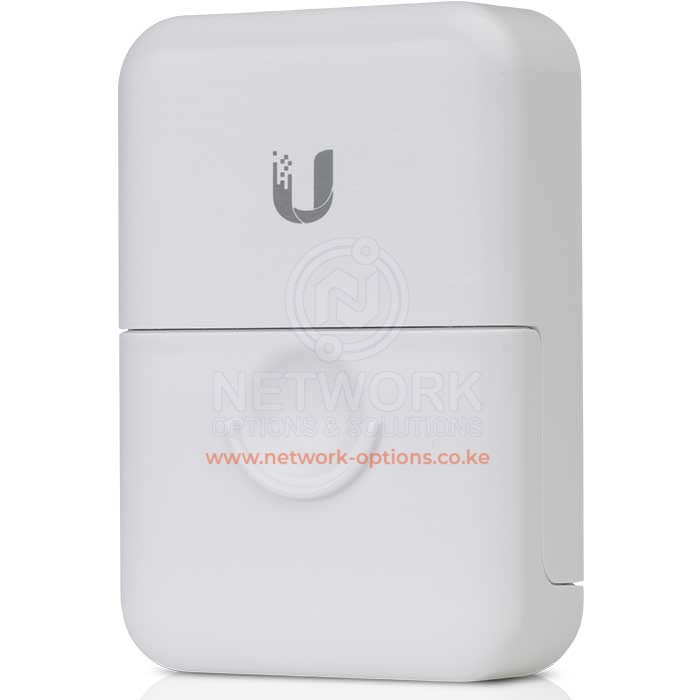

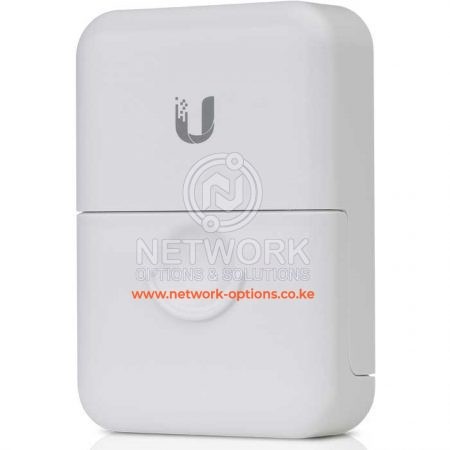

Ubiquiti ETH-SP-G2 Ethernet Surge Protector Gen 2
The Ubiquiti ETH-SP-G2 Ethernet Surge Protector Gen 2 is a cost-effective solution for protecting sensitive, third-party Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.
Ubiquiti ETH-SP-G2 Key Features
- Low-Cost Protection and Fast Installation
- Protects Outdoor Ethernet Devices
- Compatible with 10/100/1000 Mbps Networks
The Ubiquiti ETH-SP-G2 Ethernet Surge Protector Gen 2 provides all of the features of the first generation, but with significantly better surge protection performance. It is also engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.
Ubiquiti ETH-SP-G2 – Technical Specifications
General
- Dimensions: 91 x 61 x 32.5 mm (3.58 x 2.4 x 1.28″)
- Weight: 80 g (2.82 oz)
- Interface Connections: 2 x RJ45 Female Connectors
- ESD/EMP Protection: Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs
- DC Spart-Over Voltage: 90V @ 100V/s
- Maximum Impulse Spark-over Voltage: 700V @ 1kV/µs
- Discharge Current: 10kA+
- Maximum Insulation Resistance: 1G ohm @ 50V
- Maximum Capacitance: 1.0 pF @ 1 MHz
- Data Line Protection: RJ45 10/100/1000 Ethernet
- IEEE 802.3af PoE Support: Yes
- Shock and Vibration Certification: ETSI300-019-1.4 Standard
- Operating Temperature: -30 to 65° C (-22 to 149° F)
- Operating Humidity: 10 to 90% Noncondensing
