The innovative AP-5AC-90-HD airPrism® Antenna features significant advances in noise isolation and beam performance for co‑location deployments in a multi-point network.
3 x 30° Beamwidth Coverage
The three Rocket5ac Prism™ radios are installed at the top, middle, and bottom of the airPrism antenna. Each radio independently transmits and receives within its corresponding 30° beamwidth.
Powerful Performance
Highly resistant to noise
interference, the airPrism antenna provides superior beam performance in
high-density areas for high-capacity, multipoint networks.

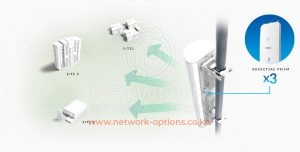

Breakthrough Design
Mounted on a single airPrism antenna, three Rocket5ac Prism radios maximize throughput in an efficient
tower footprint, minimizing installation and tower costs.
| Antenna Characteristics | |
|---|---|
| Dimensions* | 322.6 x 201.5 x 1300 mm |
| Weight | 13.1 kg (28.9 lb) |
| Frequency Range | 5.15 – 5.85 GHz |
| Gain | 22 dBi |
| Polarization | Dual-Linear |
| Cross-Polarization Isolation | 30 dB Min |
| Interfaces | (6) RP-SMA Connectors (Weatherproof) |
| Compatible Radio | Rocket5ac Prism, model |
| Wind Survivability | 200 km/h (125 mph) |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
| ETSI Specification | EN 302 326 DN2 |
