Manufacturer: Ubiquiti
Model: AMO-2G13

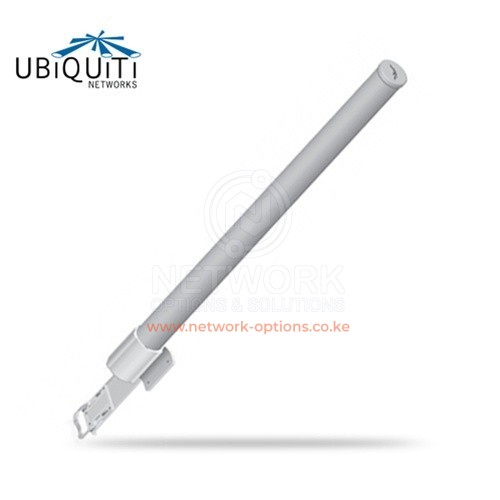

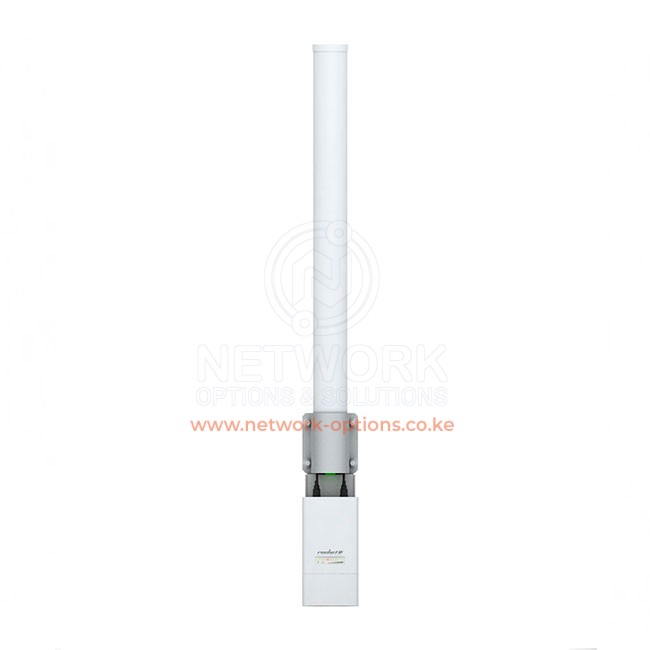

The Ubiquiti Omni AirMax MiMo Antenna 2.4GHz 13dBi is a Carrier Class 2×2 Dual Polarity MIMO omnidirectional antenna that was designed to seamlessly integrate with Ubiquiti Rocket M radios (Ubiquiti Rocket M sold separately). Ubiquiti Rocket M combines the “brains” in one robust unit; just pair Ubiquiti Rocket M with an Ubiquiti AirMax Omni to create powerful 360° omnidirectional base station. This seamless integration gives network architects unparalleled flexibility and convenience.
Ubiquiti AMO-2G13 Key Features:
Frequency – 2.4 GHz
13 dBi gain
Wind Survivability up to 125 mph
Plug-in and play integration
Here is an example of how AirMax Omni can be deployed:
1: Internet Backbone
2: ISP Network
3: Ubiquiti RocketDish with Ubiquiti Rocket M (PtP backhaul)
4: Ubiquiti RocketDish with Ubiquiti Rocket M (PtP backhaul)
5: Ubiquiti AirMax Omni with Ubiquiti Rocket M (PtMP)
6: Corporate campus with Ubiquiti NanoBridge M clients
7: Mobile computer with Ubiquiti AirGrid M client
Ubiquiti AirMax Omni Illustration
Ubiquiti Omni AirMax MiMo Antenna 2.4GHz 13dBi – Technical Specifications
Utilize Ubiquiti AirMax Technology*
Unlike standard WiFi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) AirMax protocol allows each client to send & receive data using pre-designated time slots scheduled by an intelligent AP controller.
Intelligent QoS – Priority is given to voice/video for seamless access.
Scalability – High capacity and scalability.
Long Distance – Capable of high speed Carrier Class links
Latency – Multiple features dramatically reduce noise.
Ubiquiti AirMax Omni Antenna Technical Specifications (AMO-2G13)
Frequency Range: 2.35 – 2.55 GHz
Gain: 13 dBi
Elevation Beamwidth: 12 deg / 7 deg
Max VSWR: 1.7:1
Downtilt: 4 deg / 2 deg
Dimensions: (l x w x h) 217 x 123 x 1011 mm / 217 x 123 x 1386 mm
Weight: 2.1 kg / 2.4 kg
Wind Loading: 28 lb @ 100 mph / 38 lb @ 100 mph
Wind Survivability: 125 mph / 100 mph
Polarization: Dual Linear
Cross-pol Isolation: 25 dB min
ETSI Specification: EN 302 326 DN2
Mounting: Universal pole mount, Rocket M bracket and weatherproof RF jumpers included
Downloads
Product Datasheet
Please visit the Ubiquiti Firmware page for the latest Firmware upgrades
