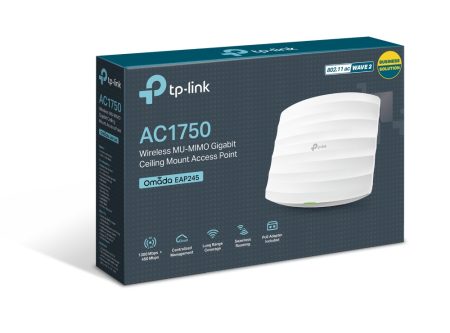

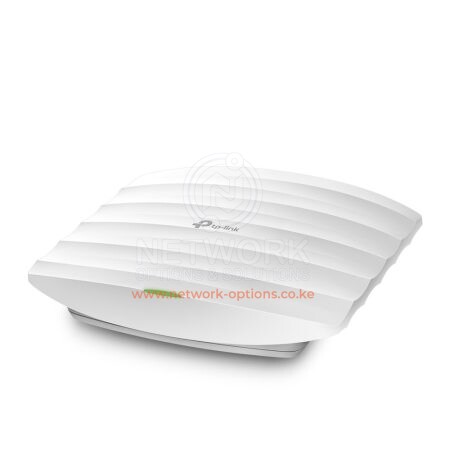

TP-Link EAP245 – AC1750 Dual-Band Gigabit Omada Access Point

Overview

The TP-Link EAP245 is a powerful AC1750 dual-band wireless access point designed for business networks, offices, hotels, campuses, and high-density Wi-Fi environments. Built on the Omada Software-Defined Networking (SDN) platform, it enables centralized cloud management, seamless roaming, and enterprise-level wireless performance.

With combined wireless speeds of up to 1750 Mbps (450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz), the EAP245 delivers fast and reliable connectivity for multiple users simultaneously.

Its ceiling-mount design, Power over Ethernet (PoE) support, and enterprise wireless technologies make it ideal for scalable Wi-Fi deployments in professional environments.

Key Features

High-Speed AC1750 Dual-Band Wi-Fi

The EAP245 provides fast wireless connectivity across two frequency bands:

• 2.4 GHz: up to 450 Mbps

• 5 GHz: up to 1300 Mbps

• Total Wi-Fi speed: 1750 Mbps

This ensures smooth streaming, VoIP calls, cloud applications, and high-speed internet access.

MU-MIMO Technology

The access point supports MU-MIMO (Multi-User Multiple Input Multiple Output) technology, allowing multiple devices to communicate simultaneously for improved network efficiency and reduced latency.

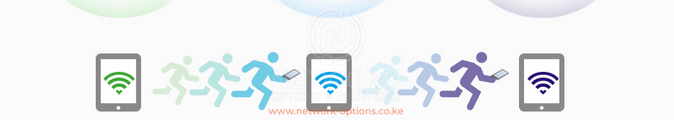

Seamless Roaming

With 802.11k and 802.11v seamless roaming, users can move between access points without connection interruptions, ensuring smooth video calls, streaming, and VoIP communication.

Omada SDN Cloud Management

The EAP245 integrates with the TP-Link Omada SDN platform, enabling centralized network management.

Management options include:

• Omada Cloud Controller

• Omada Hardware Controller (OC200 / OC300)

• Omada Software Controller

• Omada mobile app

This allows administrators to monitor, configure, and troubleshoot networks remotely.

Flexible PoE Deployment

The access point supports 802.3af/at PoE and Passive PoE, allowing power and data through a single Ethernet cable for easier installation.

Enterprise Wireless Features

The EAP245 includes advanced wireless optimization technologies:

• Beamforming for stronger signal coverage

• Band Steering to move devices to the faster 5 GHz band

• Load Balancing for stable connections in busy networks

• Airtime Fairness to improve overall network performance.

Technical Specifications

Model: EAP245
Wi-Fi Standard: IEEE 802.11ac/n/g/b/a

Wireless Performance

• 2.4 GHz Speed: 450 Mbps

• 5 GHz Speed: 1300 Mbps

• Total Throughput: 1750 Mbps

Ports

• 2 × Gigabit Ethernet (RJ45)

• 1 port supports PoE input

Coverage

• Up to 140 m² (1500 ft²)

• Supports 220+ concurrent clients

Antennas

• Internal omni antennas

• 2.4 GHz: 3 × 3.5 dBi

• 5 GHz: 3 × 4 dBi

Power

• 802.3af/at PoE

• 48 V Passive PoE

• Max power consumption: ~12.3 W

Mounting

• Ceiling mount

• Wall mount

Ideal Use Cases

The TP-Link EAP245 Omada Access Point is perfect for:

• Office Wi-Fi networks

• Hotels and hospitality environments

• Schools and universities

• Retail stores and malls

• Corporate campuses

• High-density wireless deployments

Why Choose TP-Link EAP245?

• Fast AC1750 dual-band Wi-Fi performance

• MU-MIMO technology for multiple users

• Omada SDN centralized cloud management

• PoE support for easy installation

• Seamless roaming for large wireless networks

• Enterprise-grade security and guest access
