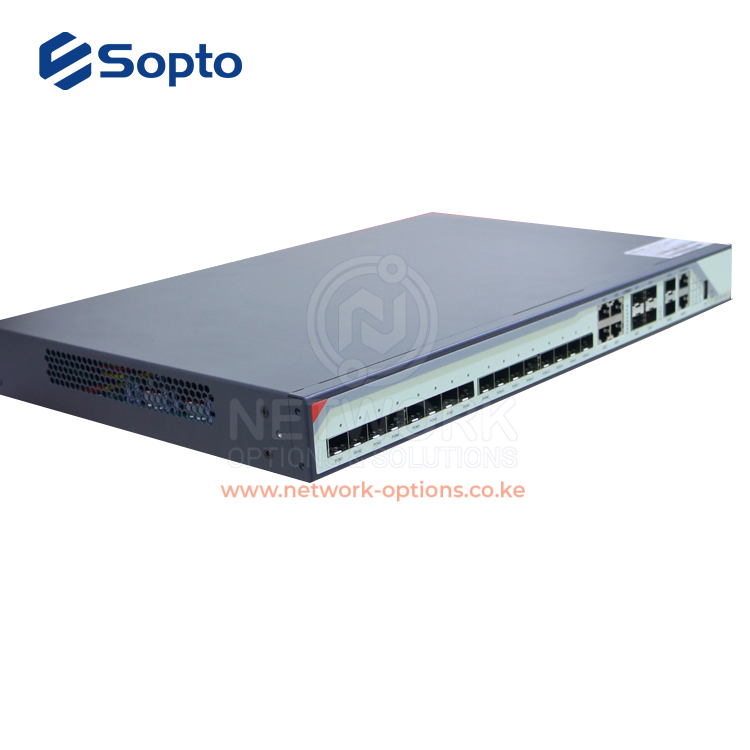

SPO-GS1642-2A 16PON GPON OLT
| Specification | |||
| Size | 440mm(L)*391mm(W)*44mm(H) | ||
| Weight | 4kg | ||
| Backplane Bandwidth | 136G | ||
| Maximum power | 70W | ||
| Working environment | Working temperature | 0～50℃ | |
| Storage temperature- | -40～85℃Relative | ||
| Relative humidity | 5～90% (Non-condensing) | ||
| Power supply
|
220VAC | AC: 90V～240V，47/63Hz | |
| -48DC | DC:-36V～-72V | ||
| Support BBU | AC: 11V～14V | ||
| Management Rack | Type | 1U 19-inch standard box | |
| Slot | 2 power module slot | ||
| USB Port | 1 Type-C interface | ||
| Management Port | 1 100/1000BASE-Tx out-band Ethernet port
1 CONSOLE local management port |
||
| Uplink Port | COMBO port | 4 10/100/1000M auto-negotiation Ethernet ports | |
| 4 SFP interfaces | |||
| 10-Gigabit | 2 SFP+ interfaces | ||
| PON Port | Quantity | 16 | |
| Physical interface | SFP slot | ||
| Interface type | ITU-TG.984.2 Class B+/Class C+ | ||
| Max splitting ratio | 1:128 | ||
| PON Port attribute
|
Transmission distance | 20KM | |
| Port rate | Downstream:2.5Gbps Upstream: 1.25Gbps | ||
| Wavelength | Forwarding: 1490nm Receiving: 1310nm | ||
| Interface type | SC/UPC | ||
| Fiber type | 9/125μm SMF (Single Mode Fiber) | ||
| Light transmission power | Class B+ +1.5～+5dBm | Class C+ +3～+7dBm | |
| Receiving sensitivity | Class B+ -28dBm | Class C+ -30dBm | |
| Saturation power | Class B+ -8dBm | Class C+ -12dBm | |
| Network management method | Support CLI、SNMP、TELNET、SSH、WEB | ||
