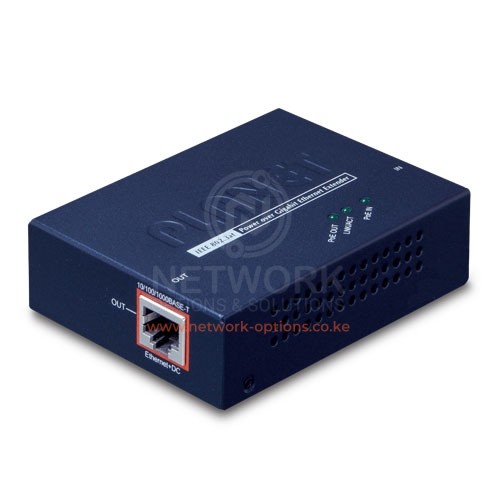

Planet POE-E201 Long Distance High Power PoE+ Extender and Gigabit Data Extension Solution
PLANET POE-E201 Gigabit PoE+ Extender is a newly-designed simple extender which extends both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet transmission distance over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m, 300m, 400m and the maximum 500m.
No matter how many PoE supported networking devices such as PoE IP cameras, PoE wireless access points and PoE IP phones are deployed, they are easily installed without the need of having an additional electrical outlet. However, limited by the UTP cabling, only up to 100 meters (328 ft.) of cable is used. Thus, the POE-E201 is designed as the extender to transmit both Gigabit Ethernet data and high power PoE power over another distance of 100m. By daisy-chaining multiple POE-E201s, distance can be tripled or quadrupled to meet your requirements.
With its ability to providing high power PoE and Gigabit Ethernet data extension, the POE-E201 is an ideal networking solution for service providers, campuses and public areas. The PoE+ Extender enables you to centrally manage the power easily, efficiently and cost-effectively no matter now remote the location is.
Easy Cabling Installation
The POE-E201 Gigabit PoE+ Extender is quite easy to be installed by simple plug and play. It is used between a power source equipment (PSE) and a powered device (PD). The POE-E201 injects power to the PD without affecting the data transmission performance. The POE-E201 offers a cost effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. This Gigabit high power PoE Extender is designed in a compact mini box containing 2 RJ45 ports, of which the “PoE IN” port functions as PoE (Data and Power) input and the “PoE OUT” port on the other side functions as PoE (Data and Power) output. The “PoE OUT” port is also the power injector to transmit DC voltage in the Cat. 5/5e/6 cable and transfer data and power simultaneously between the PSE and PD.
POE-E201 Gigabit PoE+ Extender Key Features
- IEEE 802.3at / 802.3af Power over Ethernet compliant
- Complies with IEEE 802.3 / 802.3u / 802.3ab 10/100/1000Base-T
- Extends the range of PoE to more than 100 meters (328ft.)
- Automatically detects and protects PoE equipment from being damaged by incorrect installation
- Daisy-chain installation support
- Forwards both Ethernet data and PoE power to the remote device
- No external power cable installation required
- Compact size, wall-mountable design
- Plug and Play
| Interfaces | |
|---|---|
| LAN IN | 1 x 10/100/1000Base-T Ethernet with IEEE 802.3at / 802.3af PoE “Data + DC” in auto MDI/MDI-X, auto-negotiation RJ-45 connector |
| LAN OUT | 1 x 10/100/1000Base-T Ethernet with IEEE 802.3at / 802.3af PoE “Data + DC” out auto MDI/MDI-X, auto-negotiation RJ-45 connector |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| PoE Power Supply Type | Mid-span/Type B |
| PoE Power Output | 52V DC, 510mA, max. 26 watts |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Maximum Distance | 500m with daisy-chain installation |
| Hardware Specifications | |
| Data Rate | 10/100/1000Mbps |
| Switch Architecture | Store-and-Forward |
| Switch Throughput | 10Mbps:14880pps@64Bytes 100Mbps:148810pps@64Bytes 1000Mbps:1488000pps@64Bytes |
| Maximum Frame Size | 1552Bytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| LED Indicators | ■ 1 x PoE IN (Green) ■ 1 x LAN Data (Green) ■ 1 x PoE OUT (Green) |
| Protection | ESD (Ethernet): 2KV Surge (EFT for power) : 2KV |
| Dimensions (W x D x H) | 94 x 70 x 26 mm |
| Weight | 197g |
| Power Requirements | IEEE 802.3at compliant with voltage within 52V-56V DC |
| Power Consumption | 3.2 watts (system maximum) |
| Enclosure & Installation | Metal & wall mounting |
| Network Cable | 10Base-T: 4-Pair UTP Cat. 5 up to 100m (328ft) 100Base-TX: 4-Pair UTP Cat. 5 up to 100m (328ft) 1000Base-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m, 328ft) |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standard Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet IEEE 802.3x Flow Control |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 0 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
