PLANET POE-172S Gigabit ultra Power over Ethernet Splitter

7,700.00 KSh +VAT

1 x 10/100/1000BASE-T RJ45, Ethernet data output port

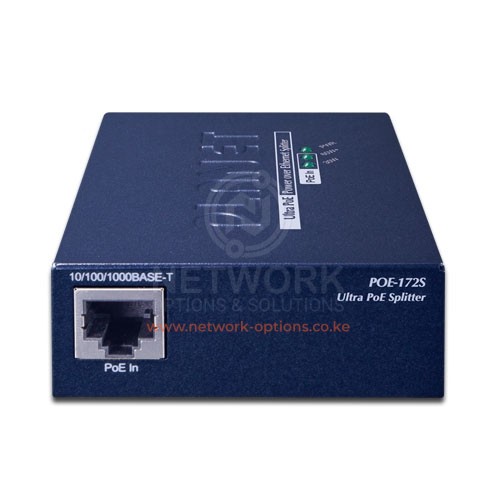

1 x 10/100/1000BASE-T RJ45, PoE power input port
802.3bt Type 3/Type 4 Power over Ethernet

Product Documents

Planet POE-172S Single-Port 10/100/1000Mbps Ultra PoE Splitter (12V/19V/24V)

PLANET POE-172S Gigabit ultra Power over Ethernet splitter, meeting the IEEE 802.3at/af standard with 802.3bt ready, delivers the Ethernet digital data and ultra PoE power over the twisted-pair cables to network devices. It separates the digital data and the power into three optional outputs (12V/19V/24V DC) and supports a transmission distance of up to 100 meters.

The POE-172S, when working with PLANET 802.3bt Ultra PoE switches or Injectors offers more PoE applications to client devices, such as:

PoE PTZ speed dome camera

Thin client

AIO (All-in-One) touch PC

Remote digital signage display

Network devices that need higher PoE power to work normally

The POE-172S frees the network device deployment from restrictions due to power outlet locations, thus eliminating the costs for additional AC wiring and reducing the installation time.

Innovative, Selectable DC Power Output Voltage

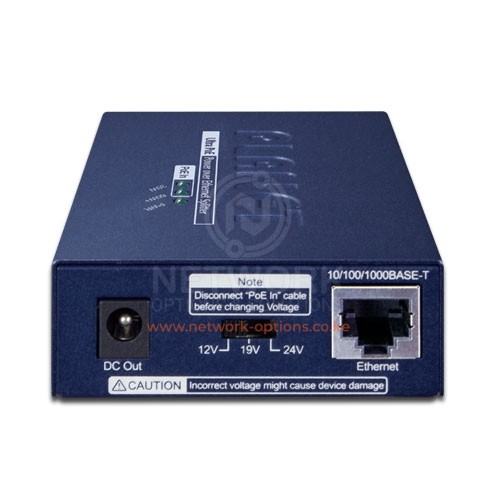

Via the innovative 12V/19V/24V DIP switch on the front panel, the POE-172S can supply either 24V DC power to industrial equipment or 12V/19V DC output to the common network devices. It highly increases the flexibility of the product applications.

Ultra PoE Power over 4-pair UTP Cable
The POE-172S and 802.3bt Ultra PoE switches use cables that meet the IEEE 802.3bt/at/af standard. Instead of delivering power over 2-pair twisted UTP cable – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), they are able to transmit ultra PoE power and data by using all the four pairs of standard Cat5e/6 Ethernet cabling.

Environment-friendly

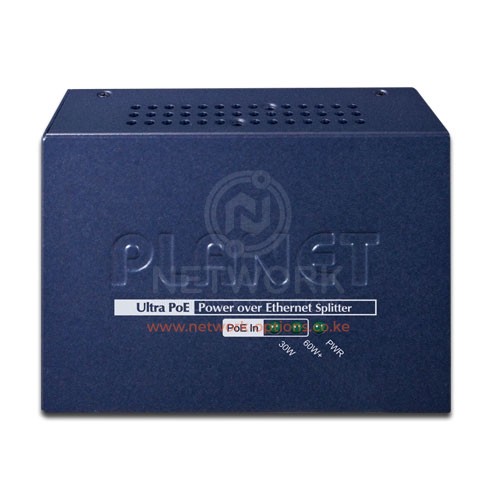

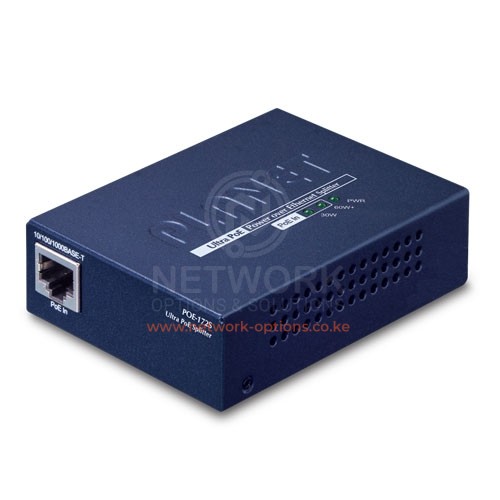

The POE-172S comes with a compact-sized metal housing, making the placement of the unit convenient. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Moreover, the POE-172S is able to operate reliably and stably without affecting its performance. The deployment of non-PoE equipment with constant power feeding can be easily and quickly done.
