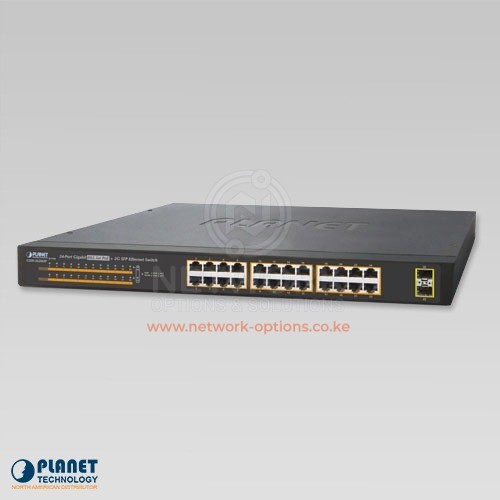

PLANET GSW-2620HP 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch

29,750.00 KSh +VAT

19-inch desktop size, 1U height

LED indicators for PoE ready and PoE activity

Ethernet Link Energy-saving technology

Out of stock

PLANET GSW-2620HP, an ideal Gigabit PoE Switch, provides a cost-effective advantage to local area networks of SMBs. Offering Layer 2 data packet switching and stable operation, this model also complies with IEEE 802.3at Power over Ethernet Plus (PoE+) at an affordable price. The PLANET GSW-2620HP is equipped with 24 10/100/1000BASE-T Gigabit Ethernet ports and 2 1000BASE-X SFP interfaces with inner power system. Its 24 Gigabit Ethernet ports are integrated with an 802.3at PoE+ injector function. It offers a rack-mountable, safe and reliable power solution for SMBs deploying Power over Ethernet networks.

Physical Port

24-port 10/100/1000BASE-T Gigabit RJ45 copper
2 1000BASE-X mini-GBIC/SFP slots

Power over Ethernet

Complies with IEEE 802.3at Power over Ethernet Plus
Complies with IEEE 802.3af Power over Ethernet
Up to 24 ports of IEEE 802.3af/802.3at devices powered
Supports PoE power up to 30.8 watts for each PoE port
Each port supports 52V DC power to PoE powered device
220-watt PoE budget
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m

Switching

Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Flow control for full duplex operation and back pressure for half duplex operation
Integrates address look-up engine, supporting 8K absolute MAC addresses
9K jumbo frame supports all speeds (10/100/1000Mbps)
IEEE 802.1Q VLAN transparency
Automatic address learning and address aging
Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)

Hardware
