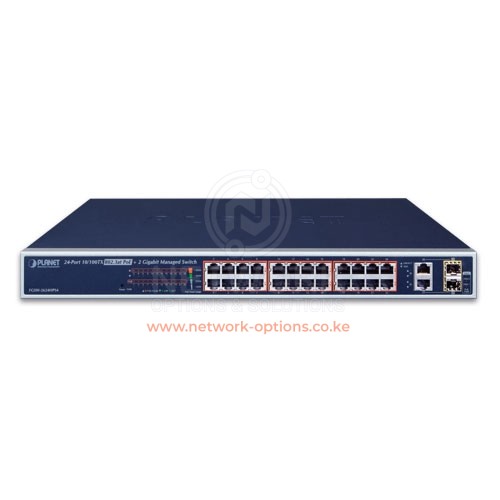

PLANET FGSW-2624HPS4 L2/L4 Managed Enterprise Switch
PLANET’s newly-revised FGSW-2624HPS4 Layer 2 PoE+ Managed Switch is designed for enterprises and industries where a network of PDs can be centrally managed. The Switch’s management functions have been enhanced to include intelligent PoE management, IPv6 management, ACL, GVRP, and more.
Cost-optimized Managed PoE+ Switch with L2/L4 Switching and Security
PLANET FGSW-2624HPS4 is an ideal Managed PoE+ Switch which provides cost-effective advantage to local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions, friendly web user interface and stable operation. The model complies with IEEE 802.3at Power over Ethernet Plus (PoE+) at an affordable price; the FGSW-2624HPS4 is equipped with 24 10/100BASE-TX Fast Ethernet ports and 2 Gigabit TP/SFP combo interfaces with inner power system. With its 24 Fast Ethernet ports integrated with 802.3at PoE+ injector function and total power budget of up to 420 watts, it offers a rack-mountable, affordable, safe and reliable power solution for SMBs deploying Power over Ethernet networks, or requiring enhanced data
Intelligent LED Indicator for Real-time PoE Usage
The FGSW-2624HPS4 helps users to monitor the current status of PoE power usage easily and efficiently with its advanced LED indication. Called “PoE Power Usage” found on the front panel of the FGSW-2624HPS4 Layer 2 PoE+ Managed Switch, it has four orange LEDs indicating the range of the current PoE power usage.
Solution for IPv6 Networking
With the support for IPv6/IPv4 protocol, and easy and friendly management interfaces, the FGSW-2624HPS4 is the ideal choice for IP surveillance, VoIP and wireless service providers to connect with the IPv6 network. It also helps SMBs to step in the IPv6 era with the lowest investment and without having to replace the network facilities even though ISPs establish the IPv6 FTTx edge network.
Key Features of FGSW-2624HPS4
Physical Port
- 24 10/100BASE-TX RJ45 copper ports with IEEE 802.3at/af PoE+ injector function
- 2 10/100/1000BASE-T Gigabit RJ45 copper ports
- 2 1000BASE-X mini-GBIC/SFP slots, shared with port-25 to port-26
- Reset button for system factory default
Switching
- Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- Automatic address learning and address aging
- Supports CSMA/CD protocol
Power over Ethernet
- Complies with IEEE 802.3at Power over Ethernet Plus
- Complies with IEEE 802.3af Power over Ethernet
- Up to 24 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE Power up to 36 watts for each PoE port
- 420-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
- PoE Management
– Per port PoE function enable/disable
– Per Port PoE operation mode selection
– Per PoE port power budget control
– PD classification detection and PoE consumption usage status
– Real-time display of PoE chipset temperature
Layer 2 Features
-
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Supports VLAN
– Port-based VLAN, up to 26 VLAN groups
– IEEE 802.1Q tagged VLAN
– Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
-
- Supports Spanning Tree Protocol
– STP (IEEE 802.1D Spanning Tree Protocol)
– RSTP (IEEE 802.1w Rapid Spanning Tree Protocol)
– MSTP (IEEE 802.1s Multiple Spanning Tree Protocol)
– STP BPDU filtering, BPDU Guard
-
- Supports Link Aggregation
– IEEE 802.3ad Link Aggregation Control Protocol (LACP)
– 1 LACP group, up to 2 ports per LACP group
– Cisco ether-channel (static trunk)
– 1 trunk group, up to 2 ports per trunk group
- Provides port mirror (many-to-1)
- Loop detection
Quality of Service
-
- Ingress/Egress Rate Limit per port bandwidth control
- Storm Control support
– Broadcast/Multicast/DLF(Destination Lookup Fail)/ARP/ICMP
– TCP/UDP/DSCP/IP precedence of IPv4/IPv6 packets
- Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
- Supports IPv4 IGMP snooping v1/ v2 and v3
- Supports IPv6 MLD snooping v1, v2
Security
– IPv4/IPv6 IP-based ACL
-
- Port-MAC-IP Address Binding
– Port-MAC-IP Port Setting
– Port-MAC-IP Entry Setting
– Static MAC
- DHCP snooping to filter distrusted DHCP messages
- ARP Inspection discards ARP packets with invalid MAC address to IP address binding
Management
- IPv4 and IPv6 dual stack management
- Switch management interface
– Telnet command line interface
- BOOTP and DHCP for IP address assignment
- System maintenance
– Firmware upgrade via HTTP
– Configuration upload/download through web interface
– Hardware-based reset button for system reset to factory default
- SNTP Network Time Protocol
- Link Layer Discovery Protocol (LLDP)
- Event message logging to remote Syslog server
- PLANET Smart Discovery utility
