Netis WF2220 Long Range 300Mbps Wireless N Access Point
The netis 300Mbps Wireless N Access Point netis WF2220 provides long range, high performance wireless Internet access over large areas. It provides you multiple wireless modes including AP, Repeater, WDS, Multi-SSID, for flexible wireless network setup and deployment. Also, with the Turbo button, you may easily control the transmission power. Under the high power mode, you will enjoy much better network experience in large homes, multi-floor offices or warehouses.
Features of the WF2220
○ Incredible wireless high speed up to 300Mbps
○ High transmission power to boost wireless signal for further distance
○ Enhanced signal strength to penetrate walls and eliminate Wi-Fi dead zones
○ High gain 5dBi detachable antenna design allowing for flexible antenna upgrade
○ Multiple wireless modes- AP, Repeater, WDS, Client,Multi-SSID(VLAN)
○ Multi-SSID providing up to 3separate networks for guests and friends
○ Wireless schedule function helping you to control your wireless online time reasonably
○ Easy wireless security setup at a push of the WPS button
○ Turbo button to improve the signal strength in a snap
○ Passive PoE(Power over Ethernet) for flexible deployment
○ Quick setup, with built-in web management page
SPECIFICATIONS
| Wireless | |
| Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Signal Rate | Up to 300Mbps |
| Frequency Range | 2.4-2.4835GHz |
| Transmit Power | 23dBm(MAX) |
| Data Transfer Rates | 802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps) 20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) 801.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps) 802.11b: (11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps) |
| Wireless Modes | AP, Repeater,WDS, Multi-SSID(VLAN) |
| Wireless Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK (TKIP/AES) SSID Broadcast Enable/Disable Wireless MAC Filtering |
| Hardware | |
| Standards | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX |
| Interface | 1 * 10/100Mbps Auto MDI/MDIX RJ45 LAN port, Passive PoE Supported |
| LED Indicators | PWR, Turbo, WPS, LAN (Turbo LED Status: Blue for Normal Power, Red for High Power) |
| Buttons | Turbo, Default, WPS |
| Antenna | 2* 5dBi Detachable Antenna, SMA Connector |
| Power Supply | DC 12V/1A (Output) |
| Software | |
| LAN | DHCP Client, DHCP Server |
| Others | Time Settings,Firmware Upgrade, Backup & Restore |
| Others | |
| Certification | FCC, CE |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |

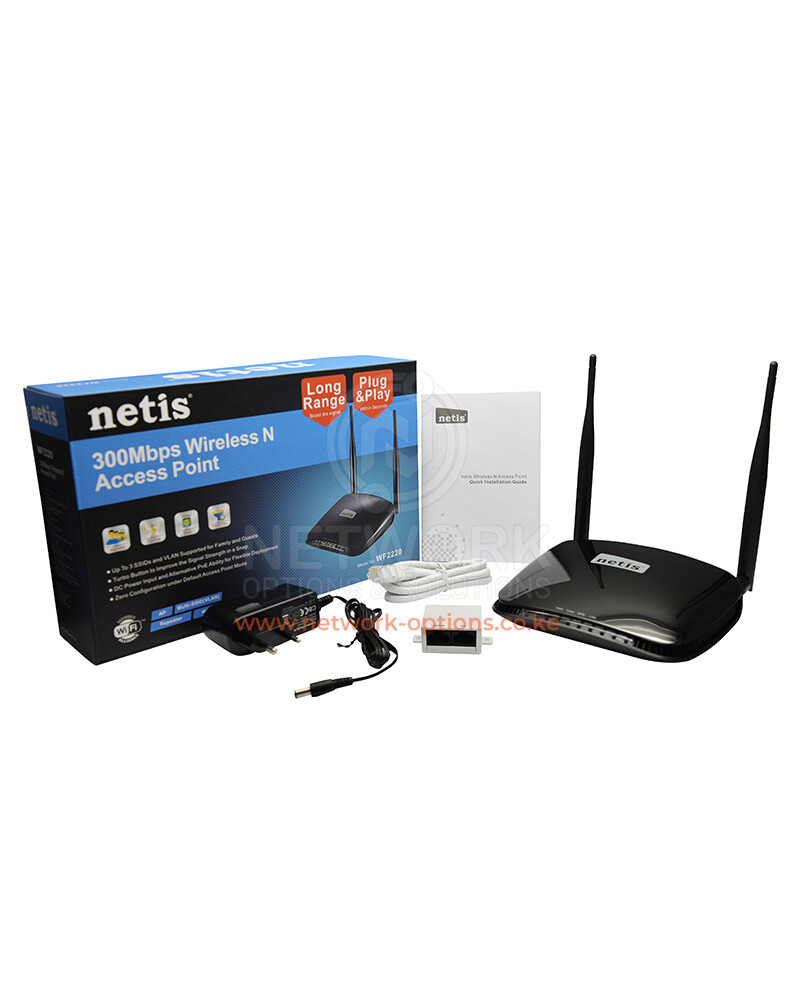

| Package | 1* WF2220 1* 12V/1A Power Adapter 1* PoE Power Injector 1* Ethernet Cable 1* Quick Installation Guide |
