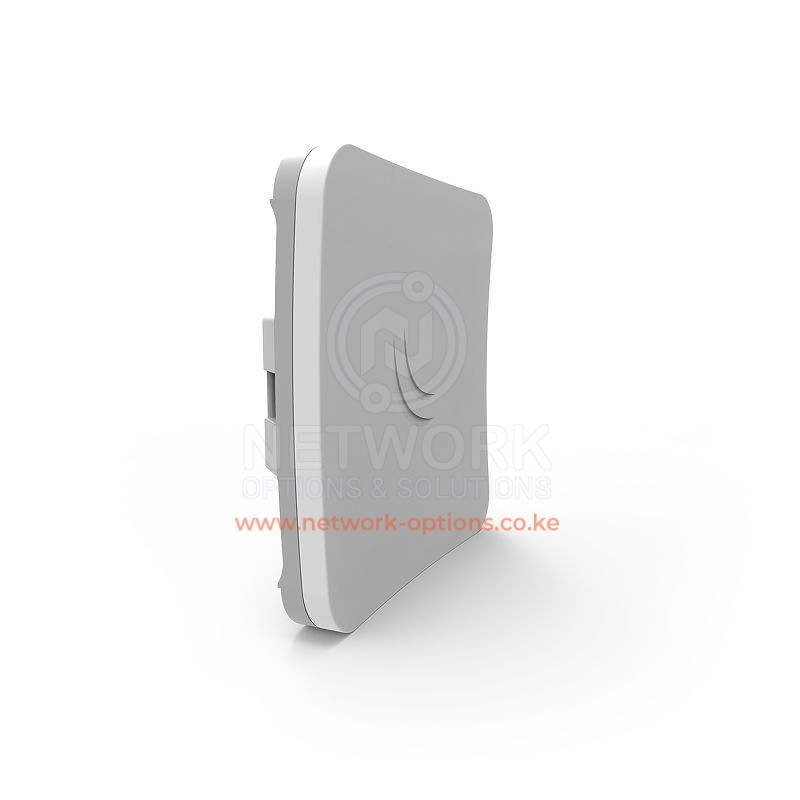

MikroTik RBSXTsqG-5acD SXTsq 5 ac Outdoor Wireless CPE

Overview

The MikroTik RBSXTsqG-5acD (SXTsq 5 ac) is a compact and powerful 5 GHz outdoor wireless CPE (Customer Premises Equipment) designed for high-speed point-to-point (PtP) and point-to-multipoint (PtMP) wireless links.

 Built with 802.11ac technology, it delivers fast wireless connectivity with improved performance and lower latency compared to legacy 802.11n devices.

Featuring a high-gain 16 dBi integrated antenna, Gigabit Ethernet connectivity, and a rugged weather-resistant enclosure, the SXTsq 5 ac is ideal for ISP deployments, wireless bridging, and long-range outdoor networking.

Key Features

High-Speed 802.11ac Wireless Performance

The SXTsq 5 ac operates on the 5 GHz frequency band and supports 802.11ac wireless standard, delivering faster speeds and improved efficiency.

• Up to 867 Mbps wireless data rate

• Reduced latency and interference

• Optimized for high-performance wireless links

This makes it suitable for ISP networks and high-capacity wireless connections.

Integrated 16 dBi High-Gain Antenna

The device features a built-in 16 dBi directional antenna designed for stable long-distance wireless communication.

Benefits include:

• Improved signal strength

• Extended wireless range

• Better link stability

The antenna is optimized for point-to-point and point-to-multipoint deployments.

Gigabit Ethernet Connectivity

Unlike earlier models, the SXTsq 5 ac includes a Gigabit Ethernet port, ensuring that the wired network connection does not become a bottleneck.

Advantages:

• Full utilization of high wireless throughput

• Faster data transfers

• Reliable wired network performance

Compact and Durable Outdoor Design

The ultra-slim weatherproof enclosure protects the device from harsh environmental conditions.

Key features:

• UV-resistant housing

• Outdoor-ready design

• Lightweight and easy installation

This ensures reliable outdoor performance for long-term deployments.

RouterOS Advanced Networking

The device runs MikroTik RouterOS, offering powerful network management and configuration options.

Supported features include:

• Routing and firewall capabilities

• Bandwidth management

• VLAN support

• Wireless bridge configuration

• Advanced monitoring and diagnostics

Technical Specifications

Model: RBSXTsqG-5acD
Product Name: SXTsq 5 ac

Wireless

• Wireless Standard: 802.11a/n/ac

• Frequency Range: 5 GHz

• Maximum Data Rate: Up to 867 Mbps

• Antenna Gain: 16 dBi integrated antenna

Hardware

• CPU: 650 MHz

• RAM: 64 MB

• Storage: 16 MB Flash

Networking

• 1 × Gigabit Ethernet port

Power

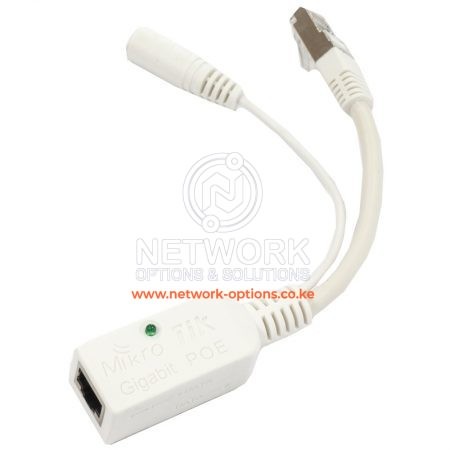

• Passive PoE input

• Input voltage: 10 – 28 V

Operating System

• MikroTik RouterOS (Level 3 license)

Environmental

• Operating Temperature: -40°C to 70°C

Dimensions

• 129 × 129 × 34 mm

Ideal Use Cases

The MikroTik SXTsq 5 ac (RBSXTsqG-5acD) is ideal for:

• Wireless ISP (WISP) customer installations

• Point-to-point wireless bridges

• Point-to-multipoint wireless networks

• Rural internet connectivity

• Outdoor wireless backhaul links
