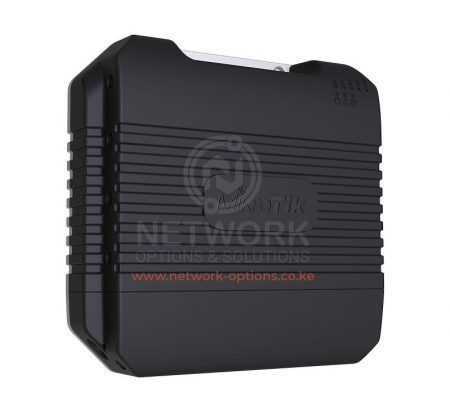

Introducing the MikroTik RBLtAP-2HnD&R11e-4G LtAP 4G kit – a heavy-duty 4G (LTE) access point with GPS support.
The new LtAP 4G kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in cellular modem that supports 4G (LTE) connectivity – no need for additional devices, it works out of the box.
Its high power 2.4 GHz 802.11b/g/n wireless capability provides secure access to LTE network from your phone or any other wireless device with up to 150 Mbps download speed. You can also use a Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.

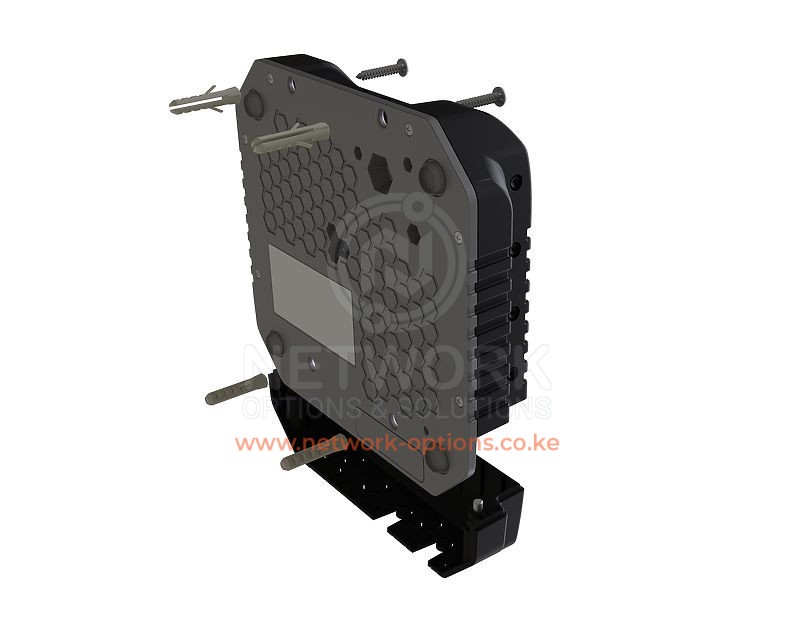

The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C‎° to +70 C‎°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!
The unit comes with an extra miniPCIe slot, offering many expansion options. For example, you can install a second LTE modem for redundancy or a 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE. Another miniPCIe slot is already populated with the LTE modem.
LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.
RBLtAP-2HnD&R11e-4G includes LTE modem that supports International bands 3, 7, 20, 31, 41n, 42 and 43.
The new LtAP 4G kit is more than an access point – it is what you need it to be wherever you need it to be.
Specification | |
---|---|
Product code | RBLtAP-2HnD&R11e-4G |
Architecture | MMIPS |
CPU | MT7621A |
CPU core count | 2 |
CPU nominal frequency | 880 MHz |
CPU Threads count | 4 |
License level | 4 |
Size of RAM | 128 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -40°C to 70°C |
Powering | |
---|---|
PoE in | Passive PoE |
PoE in input Voltage | 12-30 V |
Number of DC inputs | 3 (PoE-IN, Automotive, DC jack) |
DC jack input Voltage | 12-30 V |
Automotive input Voltage | 12-30 V |
Max power consumption | 24 W |
Max power consumption without attachments | 12 W |
Wireless | |
---|---|
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 2.5 |
Wireless 2.4 GHz chip model | AR9382 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
