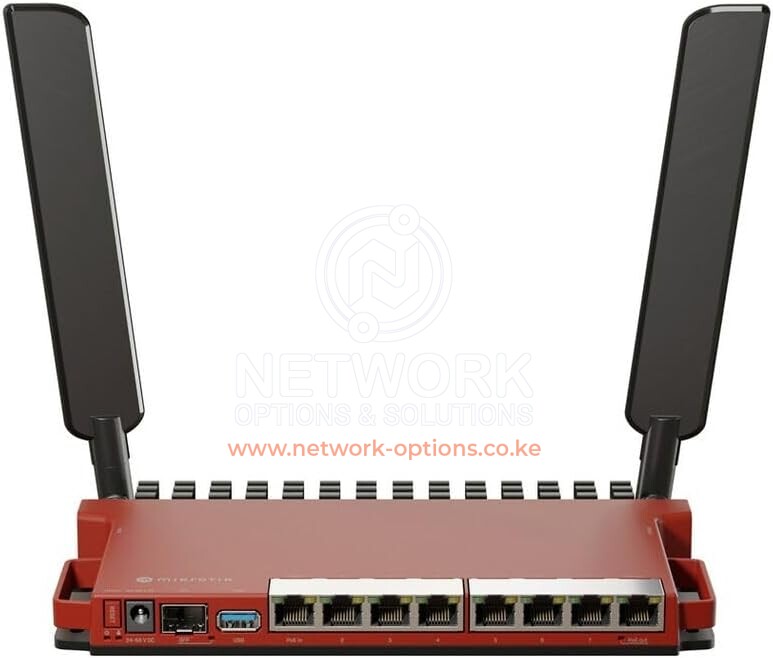

Mikrotik L009UiGS-2HaxD-IN wireless router Gigabit Ethernet Single-band (2.4 GHz) Red
Introducing the MikroTik L009UiGS-2HaxD-IN Wireless Router, your gateway to enhanced connectivity, powerful performance, and ingenious design innovations. This single-band (2.4 GHz) Gigabit Ethernet router, dressed in a striking red hue, marks a significant upgrade from the renowned RB2011 series, delivering up to 4 times faster speeds and a plethora of new features.
At its core, the L009 boasts a modern ARM CPU with container support, unleashing a new realm of possibilities for network customization and efficiency. Whether you’re delving into complex firewall configurations, implementing IPsec hardware encryption, or experimenting with advanced RouterOS features, the dual-core ARM CPU ensures seamless performance. Harness the power of the latest Linux Kernel features or embark on your container projects, all facilitated by the inclusion of a full-sized USB port.
Say goodbye to bottlenecks with the L009’s Gigabit Ethernet ports, ensuring lightning-fast data transfer rates across all connections. The inclusion of Power over Ethernet (PoE) support on the first port provides versatile power options, while the PoE-Out feature on the last port enables you to power additional devices with ease.
Furthermore, the L009 is equipped with an SFP cage supporting both Gigabit and 2.5 Gigabit connectivity, offering flexibility in your network setup. Experience the efficiency of the Marvell Peridot Switchchip, delivering a blazing 2.5 Gigabit full duplex connection to all ports except Ether1, ensuring smooth data flow without compromise.
In the wireless department, the L009 shines with its 2.4 GHz ax dual-chain wireless technology, offering up to 90% higher speeds compared to its predecessors. Enjoy enhanced signal stability and the ability to accommodate more clients, all while maintaining optimal responsiveness.
But the innovations don’t stop there—the L009 features an innovative enclosure reminiscent of the acclaimed RB5009 devices. Acting as a massive heat sink, this enclosure protects your setup from overheating while introducing a space-saving design element. With the option to mount up to four routers in a single 1U rackmount space, efficiency reaches new heights.
For those seeking a wireless-less solution without compromising on features, consider the L009UiGS-RM version. Retaining all the core functionalities of its wireless counterpart, this router provides a cost-effective alternative with all necessary mounting accessories included.
Upgrade to the MikroTik L009UiGS-2HaxD-IN Wireless Router and join the ranks of those revolutionizing network connectivity. Experience unparalleled performance, innovative design, and the reliability that MikroTik is renowned for—all in a vibrant red package.
Specifications
DETAILS |
Product code |
L009UiGS-2HaxD-IN |
Architecture |
ARM |
CPU |
IPQ-5018 |
CPU core count |
2 |
CPU nominal frequency |
800 MHz |
Switch chip model |
88E6190 |
RouterOS license |
5 |
Operating System |
RouterOS v7 |
Size of RAM |
512 MB |
Storage size |
128 MB |
Storage type |
NAND |
MTBF |
Approximately 200’000 hours at 25C |
Tested ambient temperature |
-40°C to 70°C |
Suggested price |
$129.00 |
Wireless capabilities
DETAILS |
Wireless 2.4 GHz Max data rate |
574 Mbit/s |
Wireless 2.4 GHz number of chains |
2 |
Wireless 2.4 GHz standards |
802.11b/g/n/ax |
Antenna gain dBi for 2.4 GHz |
4 |
Wireless 2.4 GHz chip model |
IPQ-5018 |
Wireless 2.4 GHz generation |
Wi-Fi 6 |
WiFi speed |
AX600 |
Ethernet
DETAILS |
10/100/1000 Ethernet ports |
8 |
Number of 1G Ethernet ports with PoE-out |
1 |
Fiber
DETAILS |
SFP ports |
1 (2.5G supported) |
Peripherals
DETAILS |
Serial console port |
RJ45 |
Number of USB ports |
1 |
USB Power Reset |
Yes |
USB slot type |
USB 3.0 type A |
Max USB current (A) |
1.5 |
Powering
DETAILS |
Number of DC inputs |
2 (DC jack, PoE-IN) |
DC jack input Voltage |
24-56 V |
Max power consumption |
47 W |
Max power consumption without attachments |
14 W |
Cooling type |
Passive |
PoE in |
802.3af/at |
PoE in input Voltage |
24-56 V |
PoE-out
DETAILS |
PoE-out ports |
Ether8 |
PoE out |
Passive PoE |
Max out per port output (input 18-30 V) |
1 A |
Max out per port output (input 30-57 V) |
450 mA |
Max total out (A) |
1.0 A |
Certification & Approvals
DETAILS |
Certification |
CE, FCC, IC, EAC, ROHS |
IP |
20 |
Other
Wireless specifications
2.4 GHZ |
TRANSMIT (DBM) |
RECEIVE SENSITIVITY |
1MBit/s |
27 |
-100 |
11MBit/s |
27 |
-94 |
6MBit/s |
30 |
-96 |
54MBit/s |
28 |
-80 |
MCS0 |
30 |
-96 |
MCS7 |
27 |
-75 |
MCS9 |
25 |
-70 |
MCS11 |
23 |
-67 |
