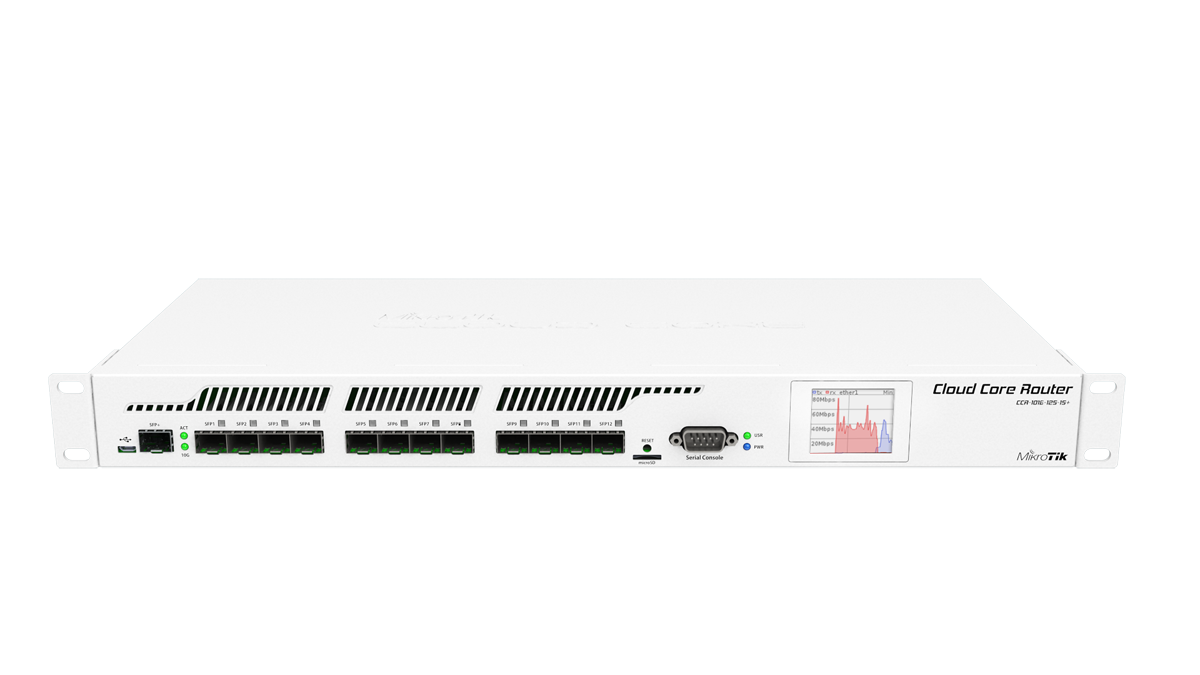

MikroTik CCR1016-12S-1S+ Cloud Core Router

MikroTik CCR1016-12S-1S+ Cloud Core Router

CCR1016-12S-1S+ Cloud Core Router is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second – Cloud Core Router is your best choice.

This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.

Product specifications
Details
Product code    CCR1016-12S-1S+
CPU nominal frequency    1.2 GHz
SFP DDMI    Yes
CPU core count    16
Architecture    TILE
Size of RAM    2 GB
Number of USB ports    1
Power Jack    2
Supported input voltage    24 V – 24 V
Voltage Monitor    Yes
CPU temperature monitor    Yes
Operating System    RouterOS v6
Tested ambient temperature    -20C .. +60C
License level    6
Current Monitor    Yes
CPU    TLR4-01680CG-12CE-A3a
Max Power consumption    44W
SFP ports    12
SFP+ ports    1
USB slot type    microUSB type AB
Serial port    RS232
Storage type    NAND
Storage size    128 MB
