MikroTik RBD25G-5HPacQD2HPnD Audience Home Access Point

21,700.00 KSh +VAT

Tri-band (one 2.4 GHz & two 5 GHz) home access point with meshing technology

Documents

Description

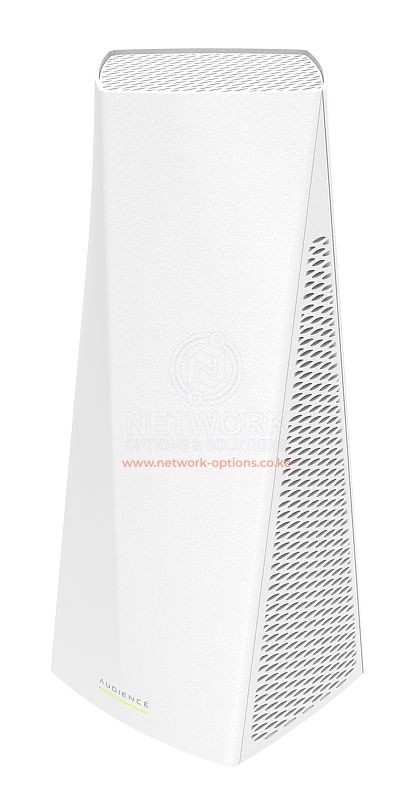

MikroTik Audience RBD25G-5HPacQD2HPnD Home WiFi Access Point

Wi-Fi has to be fast, reliable, easy to manage, it must reach every room and every corner. That is exactly what Audience RBD25G-5HPacQD2HPnD devices can deliver in grand style – even in the biggest houses!

MikroTik RBD25G-5HPacQD2HPnD is a tri-band (one 2.4 GHz & two 5 GHz) home access point with meshing technology. If you need Wi-Fi in a huge building with all kinds of obstacles, simply add more Audience devices to your network – with a press of a button they will sync seamlessly and create a single Wi-Fi network to cover the whole premises. The initial setup is also very simple – download the iOS or Android MikroTik app, it will connect to the router and guide you through a quick setup process.

In some cases a single Audience unit might be able to replace several other routers – in our tests it covered 1858 m² (20000 square feet) easily. It depends on the amount of obstacles, Wi-Fi clients and interference, so results may vary.

Dual-chain 2.4 GHz and 5 GHz wireless coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the RBD25G-5HPacQD2HPnD 2.4 GHz channel for all your household mobile devices and reserve the 5 GHz channel for your PC or TV.

Order your RBD25G-5HPacQD2HPnD Audience today at Network Options and start living in the future. The future of easy and elegant networking.

Details
Product code RBD25G-5HPacQD2HPnD
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 100 x 235 x 97 mm
License level 4
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 60°C

Powering

Details
PoE in Passive PoE
PoE in input Voltage 24-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 27 W
Max power consumption without attachments 27 W

Wireless

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3.5
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 4.5
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5
Wireless 5 GHz Max data rate 1733 Mbit/s
Wireless 5 GHz number of chains 4
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 4.5
Wireless 5 GHz chip model QCA9984
Wireless 5 GHz generation Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports 2

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 26 -100
11MBit/s 26 -94
6MBit/s 29 -96
54MBit/s 26 -80
MCS0 29 -96
MCS7 25 -75
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 28 -95
54MBit/s 25 -78
MCS0 28 -95
MCS7 24 -75
MCS9 22 -70
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 32 -96
54MBit/s 28 -80
MCS0 32 -96
MCS7 27 -77
MCS9 25 -72
