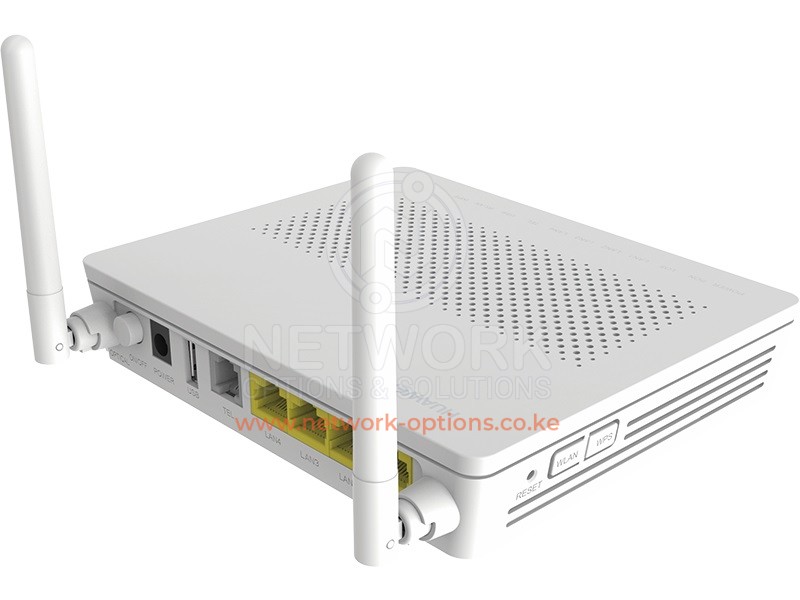

Huawei EchoLife HG8546M XPON – GPON EPON ONU 1GE+ 3FE+ 1POT+ 1USB+ 2.4GHz Wi-Fi FTTH

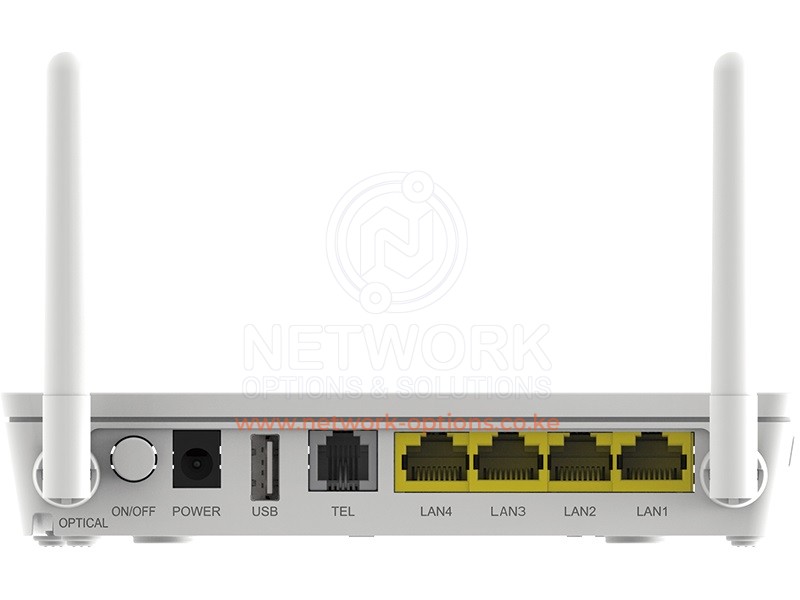

Huawei EchoLife HG8546M is a routing ONT in Huawei’s all-optical access solution, it supports 1*GE+ 3*FE+ 1*POT+ 1*USB+ 2.4GHz Wi-Fi. (1*GE Ethernet port, 3*FE Ethernet ports, 1*POTS voice port, 1*USB port, and 2.4GHz Band Wi-Fi). Huawei HG8546M can handle both GPON and EPON applications (XPON ONU)
Huawei HG8546M FTTH Product Overview
Huawei HG8546M FTTH is an Optical Terminal Unit with 1 GE+3 FE+1 POTS+1 USB+2.4G WiFi or 4 FE+1 POTS+1 USB+2.4G WiFi. This is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. It can support pure data, Data +Voice, Data+ Voice+ WIFI and other service accessing type. HG8546M ONT supports standard OMCI, can provide up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate. It can fully meet ISPs FTTB\FTTH\FTTO equipment needs The high-performance forwarding capability effectively guarantees the service experience of voice, data, and high-definition video
Huawei HG8546M FTTH Product Specification
| Brand | Huawei |
| Model | HG8546M |
| Power supply | 12V,1.5A |
| Power consumption (full loaded) | ≤15W |
| Outline dimensions (mm) (W*D*H) | 240*160*35mm |
| Weight (in maximum configuration) | ≤0.5kg |
| WIFI | Antenna 2×2, 2dBi external antenna |
| VoIP | REN Max 5REN |
| Connector 1x RJ11 | |
| Ringing 65V RMS ringing voltage | |
| USB | Max 1A for each port |
| Environmental requirements | Working temperature：0ºC~50ºC |
| Storage temperature：-40ºC~70ºC | |
| Working humidity：5%~90% Storage temperature：5%~95% no condensing | |
| Ethernet | Standard;IEEE802.3 IEEE802.3au IEEE802.3x |
| Interface;1x 10/100/1000BASE-T+ 3x 10/100Base-T RJ45
Auto negotiation Auto MDI/MDIX |
Huawei HG8546M FTTH Product Feature
-
- Class B+
- Receiver sensitivity: -27 dBm
- Overload optical power: -8 dBm
- Wavelengths: US 1310 nm, DS 1490 nm
- Wavelength blocking filter (WBF) of G.984.5
- Flexible mapping between GEM Port and TCONT
- consistent with the SN or password authentication defined in G.984.3
- Bi-directional FEC
- SR-DBA and NSR-DBA
- Type B (single-homing & dual-homing)
- Ethernet port-based VLAN tags and tag removal
- 1:1 VLAN, N:1 VLAN, or VLAN transparent
- QinQ VLAN
- Limit on the number of learned MAC addresses
- MAC address learning
- GE: Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
- FE: Auto-adaptive 10 Mbit/s, 100 Mbit/s
- 711A/μ, G.729a/b and G.722
