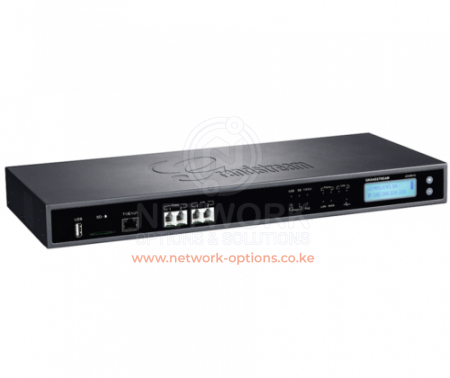

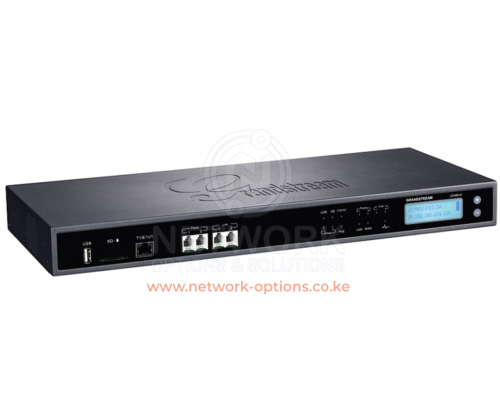

Grandstream E1 IP PBX (UCM6510) with 2000 Users

  • 2000 SIP endpoint registrations, up to 200 concurrent calls and up to 64 conference attendees
  • 1GHz quad-core Cortex A9 processor
  • 1GB DDR3 Ram, 32GB Flash
  • 1 Integrated T1/E1/J1 interface

RESOURCES

Description

The UCM6510 series allows businesses to unify multiple communication technologies, such comprehensive voice, video calling, video conferencing, video surveillance, data tools, and facility access management onto one common network that that can be managed and/or accessed remotely. The UCM6510 offers a set of comprehensive features, including customizable call-routing, multi-level IVRs, call queues, auto-attendant, call detail records (CDR), multi-site peering, SIP video support, voicemail/fax forwarding to email and more. The secure and reliable UCM6510 delivers leading edge unified communication features at an unprecedented price point without any licensing fees, costs-per-feature, or recurring fees.

Features

  • Supports up to 2000 SIP endpoint registrations, up to 200 concurrent calls and up to 64 conference attendees
  • 1GHz quad-core Cortex A9 processor
  • 1GB DDR3 Ram, 32GB Flash
  • 1 Integrated T1/E1/J1 interface, 2PSTM trunk FXO ports, 2 analog telephone/Fax FXS ports with lifeline capability, Unlimited SIP trunk accounts
  • Gigabit network ports with Integrates PoE, USB, SD card, integrated NAT router
  • Comprehensive security protection using SRTP, TLS and HTTPS with hardware encryption accelerator
  • Quickly setup and provision Grandstream endpoints using the Auto-Discovery and Zero Config feature within the product’s web user interface
Interfaces
Analog Telephone FXS Ports 2 RJ11 ports (both with lifeline capability in case of power outage)
PSTN Line FXO Ports 2 RJ11 ports (both with lifeline capability in case of power outage)
T1/E1/J1 Interface 1 RJ45 port
Network Interfaces Dual Gigabit ports (switched or routed) with PoE;
NAT Router Yes (user configurable)
Peripheral Ports USB, SD
LED Indicators Power 1/2, PoE, USB, SD, T1/E1/J1, FXS 1/2, FXO 1/2, LAN, WAN
LCD Display 128×32 dot matrix graphic LCD with DOWN and OK buttons
Reset Switch Yes, long press for factory reset and short press for reboot
Signaling & Control
DTMF Methods In Audio, RFC2833, and SIP INFO
Digital Signaling TPRI, SS7, MFC/R2, RBS (pending)
Network Protocols TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE,,SIP (RFC3261), STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay (pending)
Disconnect Methods Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone
Security
Media Encryption SRTP, TLS, HTTPS, SSH
Advanced Defense Fail2ban, alert events, Whitelist, Blacklist, strong password based access control
Physical
Universal Power Supply Input: 100 ~ 240VAC, 50/60Hz; Output: DC+12V, 1.5A
Physical Unit Weight: 2.165 kg; Package Weight: 3.012 kg
Dimensions 440mm(L) x 185mm(W) x 44mm(H)
Environmental Operating: 32 – 113ºF /,0 ~ 45ºC, Humidity 10 – 90% (non-condensing) Storage: 14 – 140ºF /,-10 ~ 60ºC, Humidity 10 – 90% (non-condensing)

UCM6150 Datasheet
