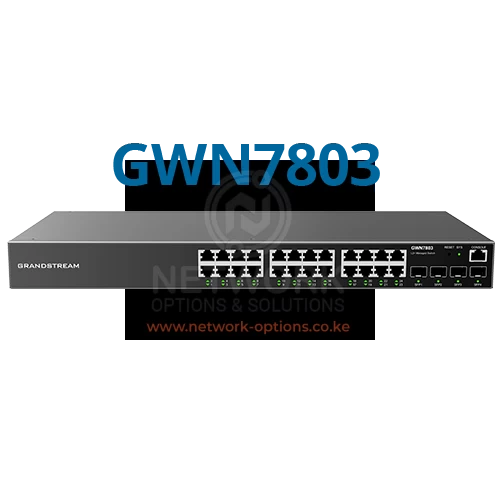

Grandstream GWN7803 24-Port Gigabit Layer 2+ Managed Network Switch

Overview

The Grandstream GWN7803 is a powerful 24-port Gigabit Layer 2+ managed network switch designed for small to medium-sized enterprises, campus networks, and business LAN deployments. It features 24 Gigabit Ethernet ports and 4 Gigabit SFP fiber uplink ports, delivering high-speed connectivity and scalable network expansion.

With a 56 Gbps switching capacity and 41.66 Mpps forwarding rate, the switch provides reliable performance for bandwidth-intensive applications such as VoIP, IP surveillance, wireless access points, and enterprise networking.

The switch supports advanced Layer 2+ networking features including VLAN segmentation, QoS traffic prioritization, link aggregation, and robust security controls, making it ideal for modern business networks.

Key Features

• 24 × Gigabit Ethernet ports (10/100/1000 Mbps)

• 4 × Gigabit SFP uplink ports for fiber connectivity

• Layer 2+ managed switching capabilities

• 56 Gbps switching capacity

• 41.66 Mpps packet forwarding rate

• VLAN support for network segmentation

• Link aggregation (LACP) support

• Spanning Tree Protocol (STP / RSTP / MSTP)

• Advanced QoS traffic prioritization

• Enterprise-grade security features

• Cloud and local network management

• Rack-mount or desktop installation

Technical Specifications

Hardware Specifications

These specifications enable the switch to handle large volumes of network traffic efficiently with minimal latency.

Networking & Switching Features

The GWN7803 managed switch provides advanced enterprise networking functionality:

• IEEE 802.1Q VLAN tagging (up to 4K VLANs)

• Voice VLAN for VoIP optimization

• Link Aggregation (LACP) up to 8 groups

• IGMP Snooping for multicast optimization

• Traffic shaping and bandwidth control

• Broadcast storm control and port mirroring

These features improve traffic management and network performance in enterprise environments.

Security Features

To secure business networks, the switch includes multiple protection mechanisms:

• 802.1X authentication

• RADIUS and TACACS+ integration

• Access Control Lists (ACL)

• DHCP Snooping

• ARP inspection

• IP Source Guard

• DoS attack protection

• Port security and storm control

These technologies help prevent unauthorized access and protect critical network infrastructure.

Management Options

The switch can be managed through several platforms:

• Web-based GUI management

• Command Line Interface (CLI)

• SNMP network monitoring

• Grandstream GDMS cloud platform

• GWN Manager on-premise controller

This flexible management system enables centralized monitoring and configuration for enterprise networks.

Physical Specifications

The rack-mount design makes it ideal for server rooms, network cabinets, and enterprise installations.

Ideal Applications

The Grandstream GWN7803 enterprise switch is suitable for:

• Enterprise LAN infrastructure

• Corporate and campus networks

• VoIP communication systems

• Wireless access point deployments

• IP surveillance systems

• Network segmentation using VLANs

Why Choose the Grandstream GWN7803

• Reliable 24-port Gigabit managed switching

• Fiber uplink connectivity for scalable networks

• Advanced Layer 2+ enterprise features

• Strong security and traffic management

• Cloud and on-premise network management

• Ideal for business and enterprise networking
