Grandstream GWN7710R 6-Port Outdoor Managed Switch

5 Gigabit RJ45 ports (4 PoE output ports, 1 PoE input port)
IEEE 802.3 at/af or 24V/48V DC passive PoE out,Up to 60W on Port 1 and up to 30W on Port 2-4; Supports PoE Watchdog function
SFP Fiber Port for long-distance transmission
DHCP Snooping – Only allow DHCP packets from trusted ports to keep the enterprise DHCP environment safe

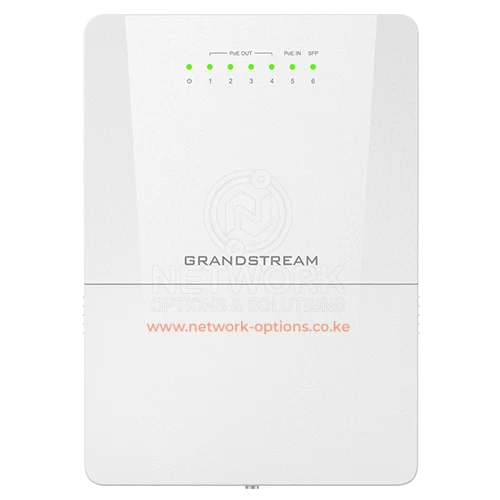

Grandstream GWN7710R – Outdoor Layer 2‑Lite Managed PoE Network Switch

The Grandstream GWN7710R is a rugged, outdoor‑ready Layer 2‑Lite managed PoE switch designed to deliver reliable wired network connectivity in harsh environments.

Encased in a waterproof and dustproof IP66 housing, this switch supports both standard PoE and passive PoE, enabling you to power outdoor network devices — such as access points, cameras, and VoIP phones — without additional power infrastructure.

🌐 Key Description

The GWN7710R features 6 total ports — including 5 Gigabit RJ45 Ethernet ports (four with PoE output and one with PoE input) and 1 1G/2.5G SFP fiber port for long‑distance uplinks. With advanced switching features like VLAN support, QoS prioritization, storm control, and support for multiple management platforms (local web UI, GWN Manager, or cloud‑based GDMS Networking), it delivers both performance and flexibility for outdoor and indoor network infrastructure.

📌 Features & Specifications

🔌 Ports & PoE

5 × Gigabit Ethernet ports (4 PoE output + 1 PoE input) for network connectivity and device powering.
1 × 1G/2.5G SFP port for fiber uplinks and extended distance connections.
PoE output support (IEEE 802.3af/at + passive 24V/48V) — up to 60 W on Port 1 and up to 30 W on Ports 2–4.
PoE Watchdog function helps automatically reboot PoE‑powered devices if needed.

☔ Outdoor‑Ready & Durable

IP66 rated weatherproof and dustproof housing, ideal for outdoor environments exposed to rain, snow, dust, and temperature extremes.
Wide operating temperature range: from ‑40°C to 60°C for reliable performance outdoors.

📊 Advanced Networking Features

VLAN support (global and port‑based) for traffic segmentation and network security.
QoS (DSCP/802.1p) for prioritizing critical traffic like VoIP or video streams.
Bandwidth control and storm control to shape traffic and prevent network congestion.
STP/RSTP support for network redundancy, fast convergence, and stability.
DHCP Snooping helps protect the network by only allowing trusted DHCP responses.

⚙️ Flexible Management

Manage locally with a Web UI or centrally with Grandstream Manager (on‑premise) or GDMS Networking (cloud) tools.
Real‑time monitoring and configuration for network performance and PoE status.

🧰 Ideal For

✔ Outdoor or semi‑outdoor network deployments like campuses, parks, hotels, and public spaces
✔ Powering outdoor devices such as wireless APs, IP cameras, and VoIP phones without separate power lines
✔ Environments requiring rugged, weatherproof network infrastructure
✔ Networks with traffic segmentation, priority control, and reliable uplinks
