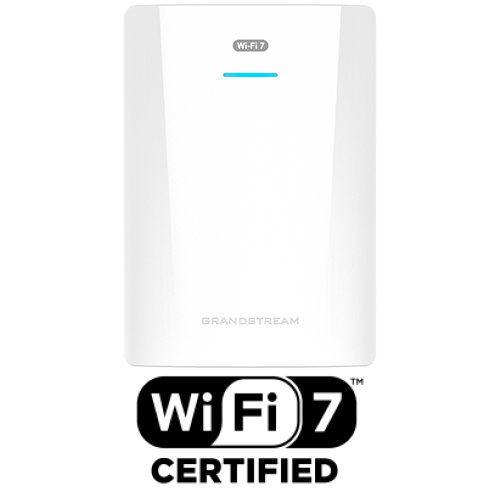

Grandstream GWN7670WM Wi-Fi 7 In-Wall Access Point

Grandstream GWN7670WM Technical Specifications

Mechanical

• Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be
• Antennas:
  5 single frequency antennas
  2.4GHz x 2, gain 3.0dBi
  5GHz x 2, gain 4.0dBi
  BT gain 3.0dBi
• Frequency Bands:
  2.4GHz Radio: 2400 – 2483.5 MHz
  5GHz Radio: 5150 – 5895 MHz
  *Not all frequency bands can be used in all regions
• Channel Bandwidth:
  2.4G: 20 and 40 MHz
  5G: 20, 40, 80, and 160 MHz
• Wi-Fi and System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
• MIMO:
  2×2:2 2.4GHz
  2×2:2 5GHz
• Coverage Range: Up to 175 meters *coverage range can vary based on environment
• Maximum TX Power:
  2.4G: 26dBm
  5G: 26dBm
  *Maximum power varies by country, frequency band and MCS rate
• SSIDs: 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
• Concurrent Clients: 256
• Network Interfaces: 1x 2.5G Ethernet WAN/LAN
• Auxiliary Ports: 1x Reset Pinhole
• Bluetooth®: BLE 5.3
• Mounting: Indoor wall mount, kits included
• LEDs:1 tri-color LED for device tracking and status indication
• Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS: 802.11e/WMM, VLAN, TOS
• Network Management:
  Embedded controller can manage up to 50 local GWN APs
  GDMS Networking offers a free cloud management platform for unlimited
  GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs
• Power and Green Energy Efficiency: PoE/PoE+ 802.3af/at;
  Maximum Power Consumption: 15.5W
• Environmental:
  Operation: 0°Cto 45°C
  Storage: -30°C to 60°C
  Humidity: 10% to 90% Non-condensing
• Physical:
  Unit Dimension: 150mmx106mmx34.1mm; Unit Weight: 473g
  Entire Package Dimension: 193mmx138.5mmx54mm; Entire Package Weight: 600g
• Package Content:  GWN7670WM Wi-Fi 7 Wireless AP, Mounting Kits, Quick Start Guide
• Compliance: FCC, CE, RCM, IC
