Grandstream GWN7624 In-Wall Wi-Fi Access Point

The Grandstream GWN7624 is an in-wall Wi-Fi access point designed for small-to-medium-sized businesses, offices, residential and commercial locations, hotels, and more. The GWN7624 provides three Gigabit network ports to provide IP phones, IPTV, computers, and similar devices with Ethernet while also providing and uplink Gigabit network port with PoE/PoE+. The GWN7624 offers 2.4G 2×2:2, 5G 4×4:4 MU-MIMO technology, and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range.

Grandstream GWN7624 In-Wall Wi-Fi Access Point

Grandstream GWN7624 Key Features:

2.03 Gbps wireless throughput and 4 Gigabit wireline ports 5GHz 4×4:4 MU-MIMO
Supports up to 200 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self-power adaptation upon auto detection of PoE or PoE+
Embedded controller can manage up to 30 local GWN series APs;

Grandstream GWN7624 In-Wall Wi-Fi Access Point – Technical Specifications

Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac
Antennas: Two 5G & two double frequency internal antennas, 2.4GHz, gain 3dBi; 5GHz, gain 5dBi
Frequency Bands: 2.4GHz Radio: 2412 – 2484 MHz 5GHz Radio: 5180 – 5825 MHz *Not all frequency bands can be used in all regions
Channel Bandwidth: 2.4G: 20 and 40 MHz, 5G: 20, 40 and 80 MHz
Wi-Fi and System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO: 2×2:2 2.4GHz(MIMO), 4×4:4 5GHz(MU-MIMO)
Coverage Range: Up to 100 meters *coverage range can vary based on environment
Maximum TX Power: 2.4G: 23dBm, 5G: 25dBm *Maximum power varies by country, frequency band and MCS rate
SSIDs: 16 SSIDs total, 8 per radio (2.4GHz & 5GHz)
Concurrent Clients: Up to 200
Network Interfaces: 1x 10/100/1000M uplink Ethernet port with PoE/PoE+, 2x 10/100/1000M Ethernet port with PSE, 1x 10/100/1000M Ethernet port
Auxiliary Ports: 1x Reset Pinhole

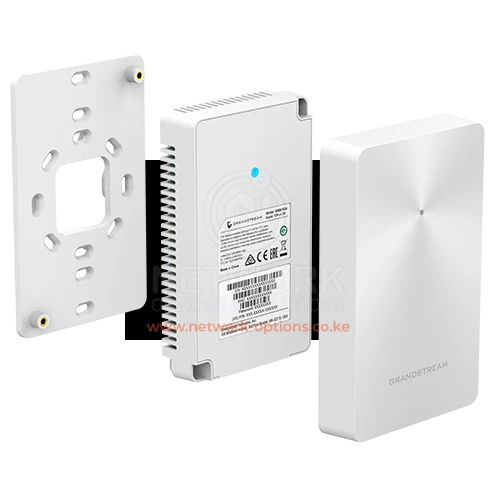

Mounting: In-wall mountable
LEDs: 1 tri-color LED for device tracking and status indication
Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS: 802.11e/WMM, VLAN, TOS
Physical: Unit Dimension: 135mm(L)x86mm(W)x38.5mm(H), Entire Package Dimension: 176mm(L)x118.5mm(W)x65mm(H)
Package Content: GWN7624 In-Wall Wireless AP, 4x Screws(KB 3.5*26) , Quick Installation Guide
Compliance: FCC, CE, RCM, IC, UKCA
