Grandstream GWN7604 Wireless Access Point

3Gbps aggregate wireless throughput, 4x Gigabit ports
Up to 100 meters coverage range
Self power adaptation upon auto detection of PoE/PoE+ and PSE
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Supports up to 256 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications

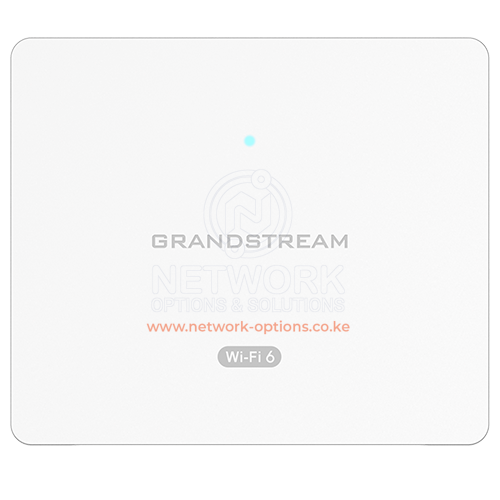

Grandstream Indoor AX3000 Wi-Fi 6 Access Point (GWN7604)

The Grandstream GWN7604 is a compact AX3000 Wi-Fi 6 access point designed for small businesses, hotels, and home offices. It provides versatility through four Gigabit ethernet ports, including one uplink port that can receive PoE/PoE+ to power the access point, and two ports with PSE that can provide PoE and a network connection to other devices.

Grandstream GWN7604 Key Features:

3Gbps aggregate wireless throughput, 4x Gigabit wireline ports
Up to 100 meters coverage range
Self power adaptation upon auto detection of PoE/PoE+ and PSE
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Supports up to 256 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications

Grandstream GWN7604 Technical Specifications

Mechanical

Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax
Antennas:
2 x dual-band internal antennas,1x 5G internal antenna
Antenna1, 2.4G gain 3.0dBi, 5G gain 3.5dBi
Antenna2, 2.4G gain 3.5dBi, 5G gain 3.0dBi
5G Antenna, gain 4.5dBi
Wi-Fi Data Rates:
5G:
IEEE 802.11ax: 7.3 Mbps to 2402 Mbps;
IEEE 802.11ac: 6.5 Mbps to 1732 Mbps;
IEEE 802.11n: 6.5Mbps to 300Mbps;
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps;
IEEE 802.11n: 6.5Mbps to 300Mbps;
IEEE 802.11b: 1, 2, 5.5, 11 Mbps;
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands:
2.4 GHz Radio: 2412 – 2483.5 MHz
5GHz Radio: 5150 – 5895 MHz
*Not all frequency bands can be used in all regions. The band 5150-5350 MHz is restricted to indoor use only in all EU states.
Channel Bandwidth:
2.4G: 20 and 40 MHz
5G: 20, 40, 80, and 160 MHz
System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO:
2×2:2 2.4GHz
3×3:2 5GHz
Coverage Range: Up to 100 meters *Coverage range can vary based on environment
