Grandstream GWN7302 PtP/PtMP Fixed Wireless Bridge
The Grandstream GWN7302 is an enterprise-grade Point-to-Point (PtP) and Point-to-Multipoint (PtMP) fixed wireless bridge designed for long-range outdoor wireless connectivity. Ideal for businesses, schools, warehouses, industrial facilities, farms, and service providers, it delivers reliable high-speed data transmission over distances of up to 5 kilometers. Featuring advanced TDMA technology, a rugged IP66-rated enclosure, and dual Gigabit Ethernet ports with PoE support, the GWN7302 provides an efficient alternative to fiber or copper cabling for connecting remote buildings and locations.
Key Features
- Enterprise-grade PtP and PtMP wireless bridge
- Long-range wireless transmission of up to 5 km
- Aggregate wireless throughput of up to 2.4 Gbps
- Single-band 5 GHz 2×2:2 MIMO technology
- TDMA technology for reduced interference and improved stability

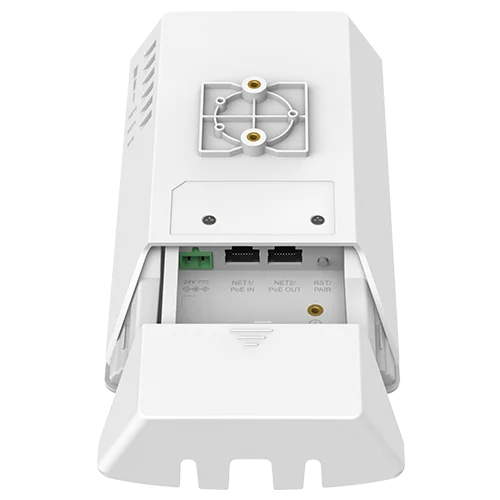

- 2 × Gigabit Ethernet ports (PoE IN and PoE OUT)
- IEEE 802.3at PoE+ powered with automatic power adaptation
- Built-in high-gain directional antenna
- IP66-rated weatherproof enclosure
- One-touch pairing for rapid deployment
- Signal strength LED indicators for antenna alignment
- Advanced QoS for low-latency applications
- Integrated controllerless management
- Supports GDMS Networking, GWN Manager, and GWN App
- Remote management through SSH tunneling
- Designed for continuous outdoor operation in harsh environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Grandstream GWN7302 |
| Product Type | PtP/PtMP Fixed Wireless Bridge |
| Wireless Standard | IEEE 802.11ac |
| Frequency Band | 5 GHz |
| MIMO | 2×2:2 |
| Maximum Wireless Throughput | Up to 2.4 Gbps |
| Maximum Coverage | Up to 5 km |
| Ethernet Ports | 2 × 10/100/1000 Mbps RJ45 |
| PoE Support | PoE IN and PoE OUT (802.3at) |
| Weather Rating | IP66 |
| Management | Embedded Web UI, GWN App, GDMS Networking, GWN Manager |
| Deployment Modes | Point-to-Point (PtP), Point-to-Multipoint (PtMP) |
| Operating Temperature | -30°C to 60°C |
| Installation | Pole Mount |
| Antenna | Integrated Directional Antenna |
Product Benefits
Deploying the Grandstream GWN7302 enables organizations to establish secure, long-distance network links without the expense of trenching or laying fiber-optic cables. Additionally, TDMA technology improves spectrum efficiency while minimizing wireless interference in crowded environments. Furthermore, its rugged weatherproof construction ensures dependable performance in outdoor installations throughout the year. Finally, centralized management through Grandstream’s networking platforms simplifies configuration, monitoring, and maintenance across multiple bridge deployments.
Ideal Applications
- Building-to-building network connectivity
- Enterprise campus networking
- Schools and universities
- Warehouses and logistics centers
- Manufacturing facilities
- Construction sites
- Farms and agricultural estates
- Hotels and resorts
- CCTV surveillance backhaul
- Industrial automation
- Parks and recreational areas
- Wireless Internet Service Providers (WISPs)
- Temporary outdoor event networking.
Useful Links
- Official Grandstream Website: Grandstream Networks
- Product Page: Grandstream GWN7302 Product Page
- Official Datasheet (PDF): Grandstream GWN7302 Datasheet
- Cloud Management: GDMS Networking Platform
- On-Premise Management: GWN Manager
