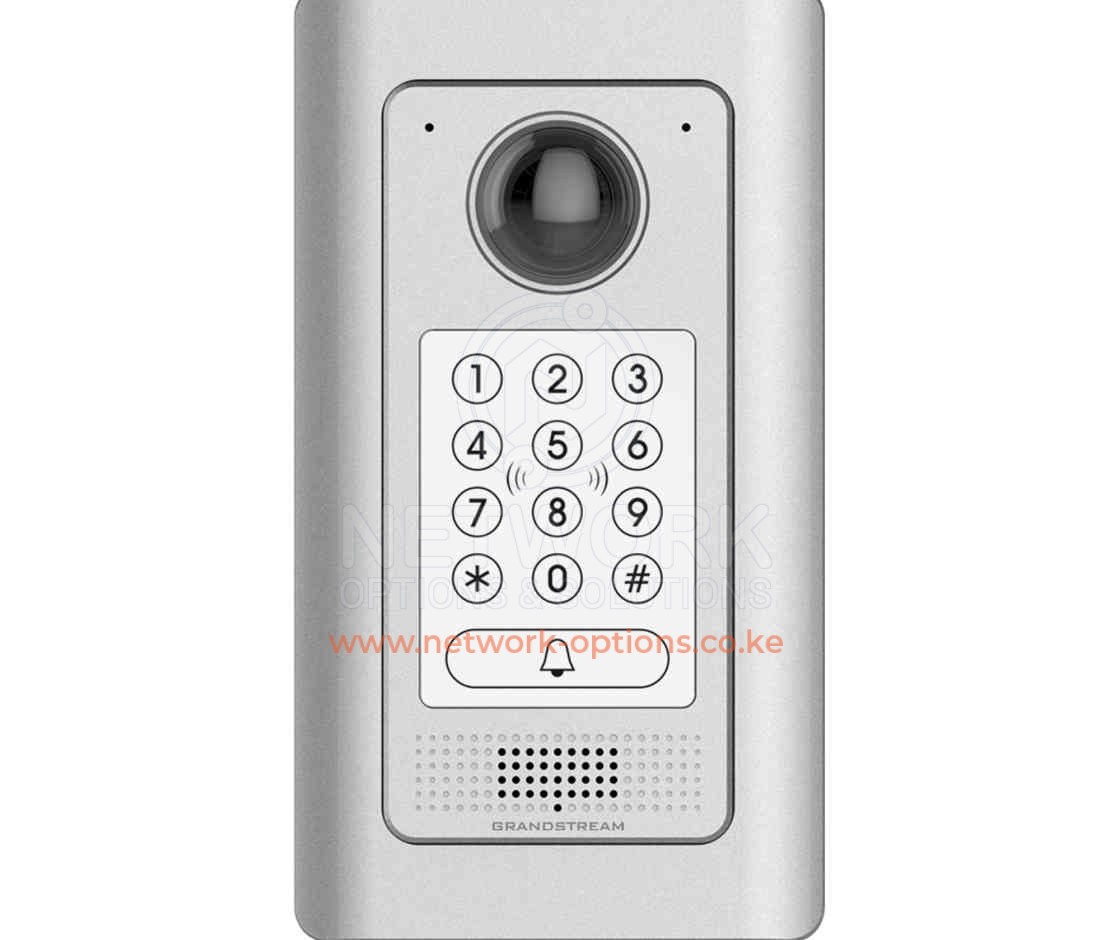

The GDS37X0-IW In-Wall Mounting Kit is available for use with the GDS3710 and GDS3705. This mounting kit allows the GDS series to be mounted flushed within a wall rather on the surface of the wall. It supports solid wall, stud and drywall (hollow wall) installation. When installing any GDS series device or the In-Wall Mounting kit, please follow local building and electrical code. The GDS37X0-IW is suggested to be installed with the bottom of the device 50-55 inches above the ground.
Included in the Box of GDS37X0-IW
- 1 installation bracket
- 1 cover plate
- 1 plastic box
- 1 drill template
- Quick reference guide
- 1 metal frame
- 6 piece anchor and screw set
- 12 screws (2 different lengths)
- 12 nuts (two different styles)
- 6 anti-tamper screws
- 1 anti-tamper hex key
Required In-Wall Space: 99.8mm (3,93 inches) x 193.88mm (7.63 inches), 35mm deep (1.38 inches)
