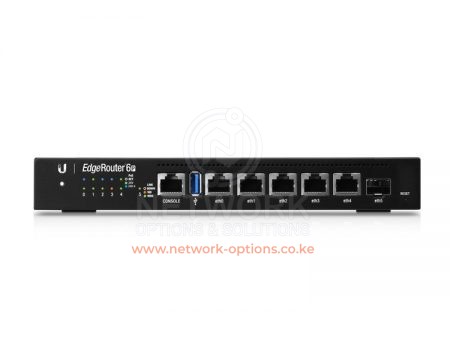

The Ubiquiti EdgeRouter ER-6P is a router that combines carrier-class reliability with enterprise-level features in a compact and affordable unit. The EdgeRouter 6P offers Gigabit Ethernet ports and an SFP port for a fiber link. The EdgeRouter 6P also offers five configurable PoE ports to power airMAX products. The ER-6P has the capability of routing up to 3.4 million packets per second and has a line rate of 6 Gbps.
Ubiquiti EdgeRouter ER-6P Key Features
- 5 x Gigabit RJ45 routing ports
- PoE support on RJ45 ports: 24V 2-pair or 24V 4-pair
- 1 x Gigabit SFP port
- 3.4 million packets per second for 64-byte packets
- 6 Gbps for packets 256 bytes or larger in size
- Silent, fanless operation
- Compact, durable metal case
Powered by a proprietary and intuitive graphical interface, EdgeOS, EdgeRouters can easily be configured for routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands. Even greater convenience and flexibility is provided by the UNMS app, which makes it possible to manage the ER-6P remotely from your mobile device.
Ubiquiti EdgeRouter ER-6P Technical Specification
- Dimensions: 229 x 136.5 x 31.1 mm (9.02 x 5.37 x 1.22 in)
- Weight: 730 g (1.61 lb)
- Max. Power Consumption: 16 W (Excludes PoE Output)
- Power: External AC Power Adapter, 60W (24V, 2.5A)
- Power Input: 110 – 240VAC
- Button: Reset
- LEDs :
- Data Ports: Speed/Link/Activity, PoE
- SFP Data Port: Link/ Activity
- Networking Interfaces:
- Management: 1 x RJ45 Serial Port, 6 x Ethernet Ports (Default eth0)
- Networking: 5 x 10/100/1000 RJ45 Ports with PoE, 1 x 1 Gbps SFP Port
- Processor: 4-Core 1 GHz, MIPS64
- System Memory: 1 GB DDR3 RAM
- On-Board Flash Storage: 4 GB eMMC, 8 MB SPI NOR
- Rack-Mountable: Yes
- Operating Temperature: -10 to 50° C (14 to 122° F)
- Operating Humidity: 10 – 90% Non-condensing
- Certifications: CE, FCC, IC
