High-Speed, Focused Wireless Bridge Connects Point-to-Point or Point-to-Multi-Point Networks

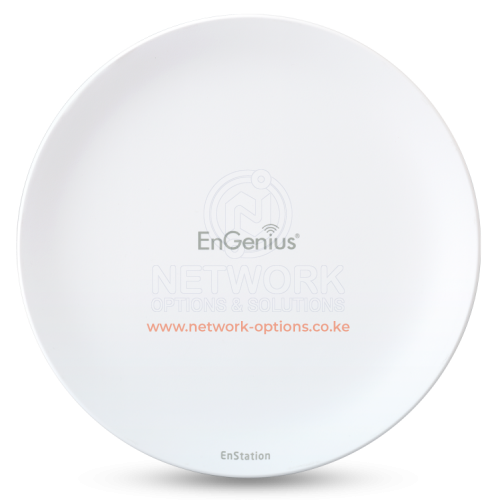

EnStation5 is a 5 GHz High-Powered, Long-Distance Wireless N300 Outdoor AP/Client Bridge with a high-gain 19 dBi dual-polarization internal directional antenna ideal for Point-to-Point deployments up to 5 miles. It includes two (2) Fast Ethernet ports and is housed in an IP55-rated waterproof housing to maintain robust performance even in harsh environments. Its dedicated 5 GHz frequency band avoids access points and client devices on the more congested 2.4 GHz frequency making it a smart solution for streaming video data for IP Cameras monitoring parking lots and it includes an additional Fast Ethernet Port (LAN 2) to connect a camera for this type of application.
Going The Distance. EnGenius EnStations are Outdoor Wireless Access Points that feature high 26 dBm output power and high receive sensitivity coupled with embedded high-gain directional antennas that emit a narrow signal beam to deliver robust and stable connectivity over extremely long distances — up to 5 miles in clear line-of-sight point-to-point deployments!
EnStations, therefore, are ideal for:
• extending networks in large campus venues;
• over extensive acreage in industrial, farming or ranching properties;
• in massive indoor structures like arenas, shopping malls, warehouses, convention centers;
• connecting to digital signage;
• or even in more urban environments where there is clear line-of-sight between the EnStation and another Access Point; or between two EnStation units of the same frequency band.
Specification
Hardware
RF: 5 GHz Frequency Band
Standard: IEEE 802.11a/n
Radio I: 11a/n: 5.180-5.825 GHz
Data Rate: Up to 300 Mbps in 5 GHz band
Memory: 64MB
Flash Memory: 16MB
Transmit Power:
Up to 26 dBm
Up to 400 mW
Radio Chains/Spatial Streams – 2×2:2
Supported Radio Technologies:
802.11a/n: Orthological Frequency-Division Multiplexing (OFDM)
802.11n with 5/10/20/40 MHz Channel Width
802.11a with 5/10/20 MHz Channel Width
802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM
Supported Data Rates (Mbps):
802.11a: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5~300 (MCS0 to MCS15)
Physical Interface
Two (2) 10/100 BASE-T Ethernet Ports
One (1) Port supports 24V Proprietary PoE Input
One (1) Port supports extension of an Internet signal
Reset Button
LED Signal
Power
LAN 1
LAN 2
WLAN
Antenna
19 dBi GHz Antenna
Point-to-Point Transmission for Long Range Distances
5 GHz (Port 1)
Average Antenna Gain: 19 dBi
Polarization: Linear
Azimuth Beam Width: 30°
Elevation Beam-Width: 18°
VSWR: 1:2.0
5 GHz (Port 2)
Average Antenna Gain: 19 dBi
Polarization: Linear
Horizontal Beam Width: 18°
Elevation Beam-Width: 30°
VSWR: 1:2.0
Power Requirements
Power Source (PoE Injector):
24V/.6A Proprietary Compliant Source
Active Ethernet (Power over Ethernet, PoE)
Power Consumption: 7 W
