The DMC-700SC by D-Link is a media converter designed to connect 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Based on the IEEE 802.3ab and 802.3z standards, the media converter is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The media converter supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The DMC-700SC will transmit at extended fiber optic distances utilizing multimode fiber up to 550 meters.

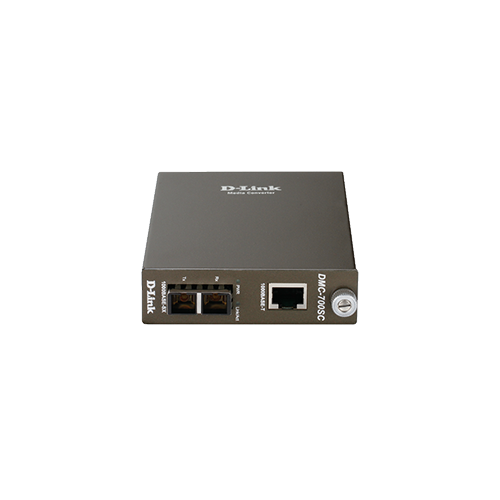

D-Link DMC-700SC
LED Indicators
>Power (PWR)
>LINK/ACT
Dimensions
>120 x 88 x 25 mm
Power Input
>7.5V 1.5A
>Through external AC power adapter
Operating Temperature
>0° – 40° C
Storage Temperature
>-25° – 70° C
Humidity
>10 ~ 90% non-condensing
Emission (EMI)
>FCC Class B
>VCCI Class B
>CE Class B
>C-Tick
