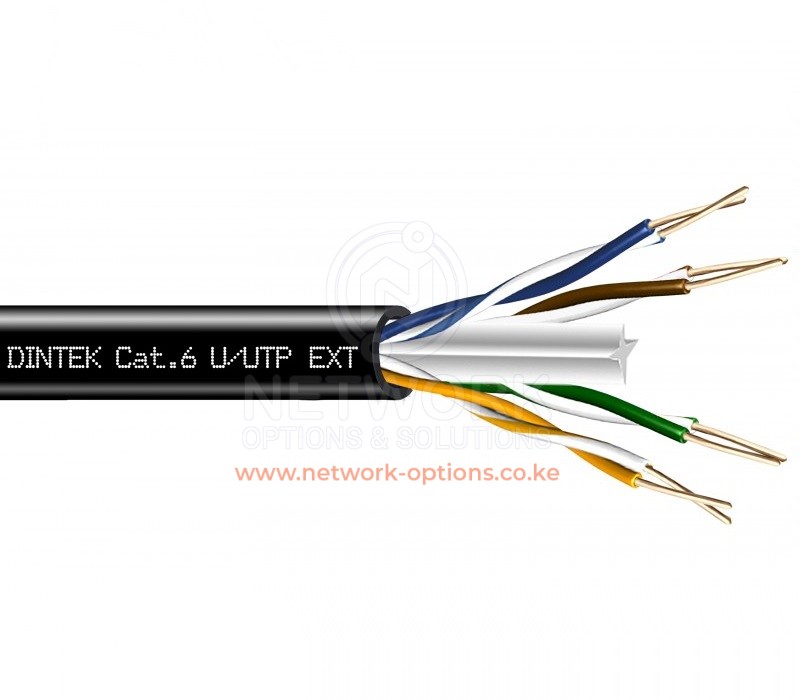

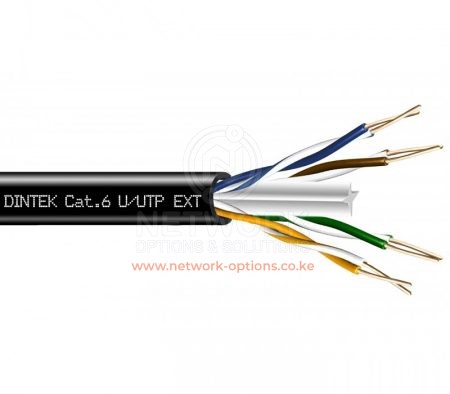

Dintek PowerMAX Exterior Cat.6 U/UTP 23AWG Cable – 1101-04014
DINTEK PowerMAX Category6 4 Pair Exterior (Industrial) 23AWG Cat.6 U/UTP cable – 1101-04014, has been designed to support high speed Gigabit data transmission systems to a distance not exceeding 100mtrs.
For Outdoor or conduit situations, this cable is part of the PowerMAX System range of products, that have been designed based on the PowerSum principle of crosstalk measurement and testing. We recommend that the full range of PowerMAX products are used in a system to maximize cabling performance, providing extended frequency response and enhanced bandwidth.
When combined as an end to end solution, the PowerMAX system, when installed by a certified installer can be warrantied for 25yrs.
Application
- For Outdoor or Aerial Applications
- Voice; T1; ISDN
- 10BASE-T (IEEE 802.3)
- 16Mbps Token Ring (IEEE802.5)
- 100VG-AnyLAN (IEEE802.12)
- 100BASE-T Ethernet (IEEE802.3)
- 155/622Mbps 1.2/2.4 Gbps ATM
- 1000Mbps Gigabit Ethernet
- 550MHz Broadband Video
Standards Conformance
- ISO/IEC11801 2nd edition CLASS E
- ANSI/TIA-568-C.2 Cabling Standard
- CENELEC EN 50173-1,CENELEC
- EN 50288-5-1,IEC 61156-5 for horizontal cable
- Flame retardancy is verified according to IEC 60332-1-2
Independent Verified Certifications
| Frequency Mhz |
Insertion Loss dB/100mtrs |
NEXT (dB) |
Return Loss
(dB) |
|---|---|---|---|
| 1 | 2.0 | 74.3 | 20.0 |
| 4 | 3.8 | 65.3 | 23.0 |
| 10 | 6.0 | 59.3 | 25.0 |
| 16 | 7.6 | 56.2 | 25.0 |
| 20 | 8.5 | 54.8 | 25.0 |
| 31.26 | 10.7 | 51.9 | 23.6 |
| 62.5 | 15.4 | 47.4 | 21.5 |
| 100 | 19.8 | 44.3 | 32.3 |
| 150 | 24.9 | 41.4 | 30.8 |
| 200 | 29.0 | 39.9 | 18.0 |
| 250 | 32.8 | 38.3 | 17.3 |
