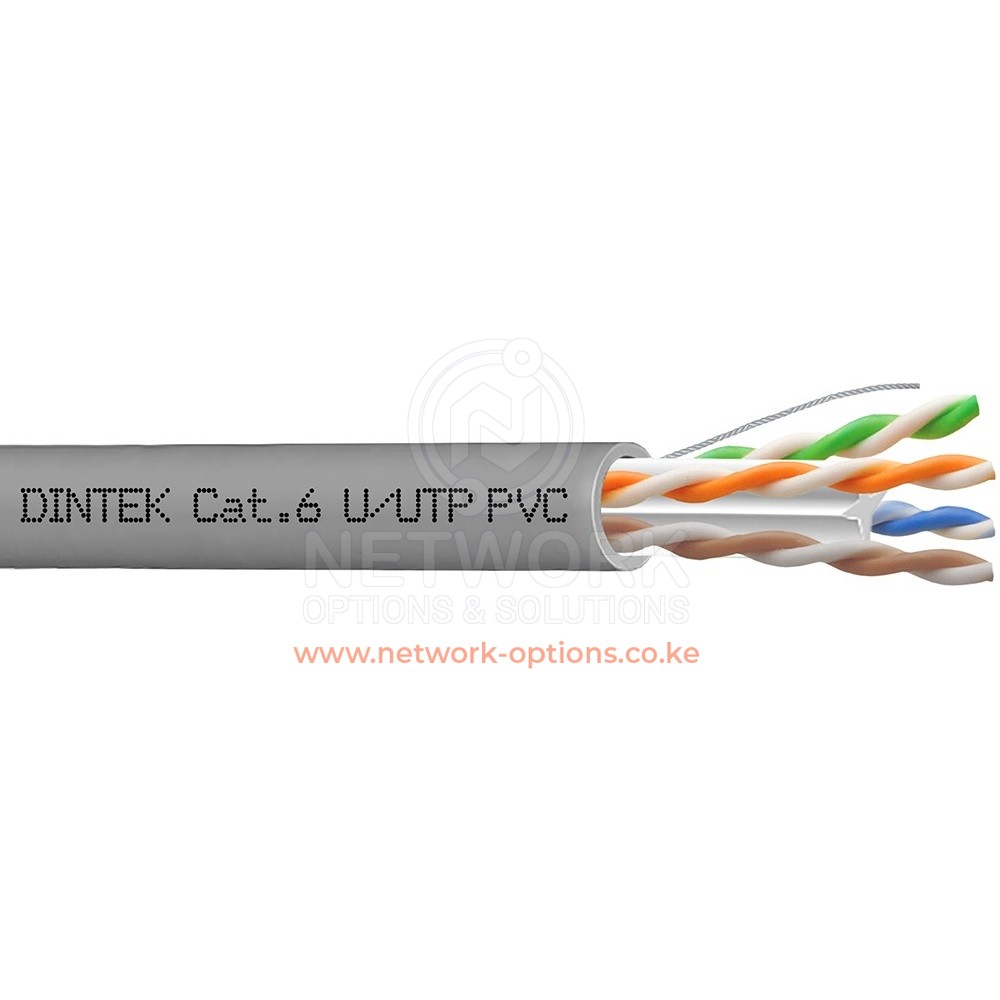

DINTEK PowerMAX500 4P Cat.6 U/UTP 23AWG Interior PVC Cable 305M – Gray 1101-04004
DINTEK PowerMAX500 unshielded Cat.6 / Class E U/UTP PVC cable is guaranteed to exceed Cat.6 specifications as set down in ANSI/TIA and ISO/IEC standards. Our PowerMAX500TM solution comprises unshielded Cat. 6-component compliant patch panels, keystones, and patch cords.
When combined with DINTEK’s unshielded Cat.6 / Class E U/UTP PVC cable, an end-to-end channel exists that maximizes data throughput and provides headroom for future technologies operating to, and beyond 1 Gigabit Ethernet.
Features
○ Capable of handling the latest versions of Power over Ethernet
○ Conductor sizes for PowerMAX500TM Cat.6 set at 23AWG
○ PVC jacketed 4 pair telecommunications cable
○ Successful transmission at 500Mhz up to a length of 70Mtrs
○ EZI-Pull 305Mtr Box for trouble-free installation
Features & Applications
○ Horizontal and backbone cable
○ 1000BASE-TX Gigabit Ethernet / 1000BASE-T Gigabit Ethernet
○ 100BASE-TX Fast Ethernet / 10BASE-TX Ethernet
○ 100 Mbps TP-PMD / 100VG-AnyLAN
○ Broadband Video / Voice / T1 / ISDN
○ 10 Gigabit (500Mhz) Transmission up to length of 70Mtrs
Standards Conformance
○ Performance – ANSI/TIA 568.2-D Cat.6 / ISO/IEC 11801
○ Structural – EN 13501-6:2014 | IEC 61156-5 | EN 50288-6-1
○ PoE capability – IEEE 802.3bt level 3 & 4 (PoE++ & 4PPoE)
○ Environmental – Conforms to RoHS and REACH Directives
○ Flame testing – EN 60332-1-2
Independent Verified Certifications
○ ETL Certification according to ANSI / TIA-568.2-D Cat.6
○ UL Cable Fire Rating – CM as per UL 444
