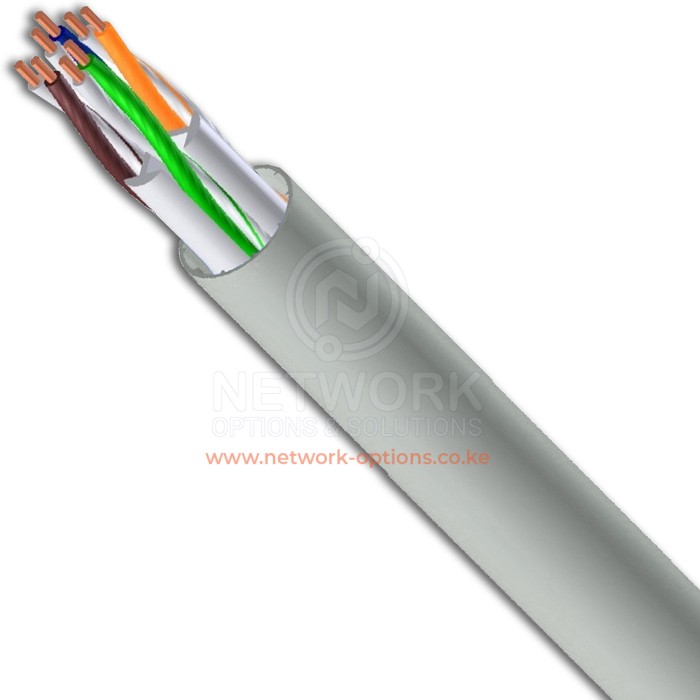

Dintek Cat.6A U/UTP PowerMAX+ 23AWG Cable PVC
Dintek Cat.6A U/UTP PowerMAX+ is a quality cable which is manufactured to minimize alien cross talk and increase performance. While not a problem at the lower frequencies of Cat 5e and Cat 6 cabling, the higher frequency signals of CAT.6A makes Alien Cross Talk the limiting noise source for these systems. DINTEK cables are designed to minimize this crosstalk.
The Dintek Cat.6A U/UTP PowerMAX+ high-speed network cables are ideal for home or office networks. Used to connect computers, game consoles, TV and media players to your modem, routers, switches and other network devices. Suitable for networks running at 10Mbps, 100Mbps or 1000Mbps or 10Gbps.
Application of Dintek Cat.6A U/UTP PowerMAX+
- 10GBASE-T Ethernet
- 100BASE-TX Fast Ethernet
- 1000BASE-TX Gigabit Ethernet
- 1000BASE-T Gigabit Ethernet
- 10BASE-TX Ethernet
- ATM CB1G
- 155/622 Mbps ATM
- 100 Mbps TP-PMD
- 100VG-AnyLAN
Standards Conformance
- ISO/IEC61156-5 2nd edition
Technical Specifications of Dintek Cat.6A U/UTP PowerMAX+
| Construction | |
|---|---|
| Conductor | |
| Material | Pure Annealed Copper |
| Wire Size | 23AWG |
| Insulation | |
| Material | PE |
| Thickness | 0.21 |
| Wire Size | 1.03 ± 0.05 |
| Colors | Blue/White-Blue | Orange/White-Orange | Green/White-Green | Brown/White-Brown |
| Unaged Elongation(%) | 300% at ( 100℃ x 48hrs ) |
| Unaged Tensile Strength | 2400psi |
| Central Element | PE Cross Filler |
| Jacket | |
| Material | PVC |
| Diameter | 8. 3 ± 0.3 |
| Color | Gray |
| Central Element | PW Cross Filler |
| Physical Ranges | |
| Insulation | |
| Min. Tension Strength | |
| Before Aging | 2400psi |
| After Aging | 75% (at 100℃ for 48hrs) |
| Min Elongation(%) | |
| Before Aging | 300% at ( 100℃ x 48hrs ) |
| After Aging | 75% (at 100℃ for 48hrs) |
| Jacket | |
| Min. Tension Strength | |
| Before Aging | Min. 2000psi |
| After Aging | 85% (100℃ X 168hrs) |
| Min Elongation(%) | |
| Before Aging | 100% |
| After Aging | 50% (100℃ X 168hrs) |
| Cold Bend Test | -20 ± 20C X 4hrs no. crack |
| Dielectric Strength | AC 1.7 KV for 2 s |
| Min. Bending Radius | 65mm |
| Max. Pulling Tension | 8-10kg  (25lbs) |
| Installation Temperature | -10℃ to +60℃ |
| Operating Temperature | -10℃ to +60℃ |
| Electrical | |
| Conductor Resistance | 9.5 Ohm /100m at 20°C |
| DC Resistence Unbalance | 4% max |
| Pair-to-Ground Capacitance Unbalance | 1600 pF/km |
| Dielectric Strength of Insulation | AC 1.7 KV for 2 s |
| Insulation Resistence Test | 150M ohm/km |
| Mutual Capacitance | 5600pf/100m |
| Impedance | 125 Ohm 20%(64KHz). 100 Ohm 15%(1~500MHz) |
| Spark test | 2000 ± 250 V ac |
