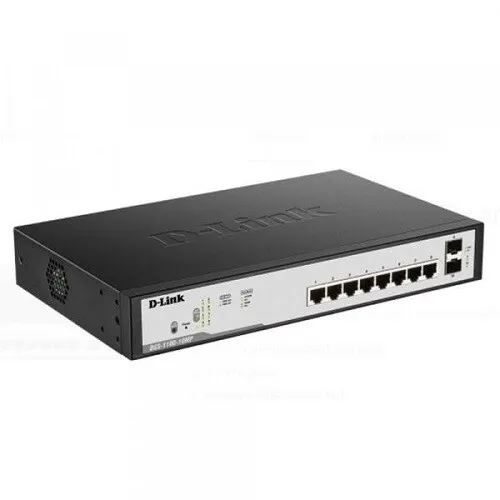

D-Link DGS-F1100-10PS–E 10-Port Gigabit PoE+ Managed Switch

Overview

The D-Link DGS-F1100-10PS-E is a 10-port Gigabit PoE+ smart switch designed for small businesses, office networks, and IP surveillance deployments. It features 8 Gigabit PoE+ ports and 2 Gigabit uplink ports, delivering high-speed network connectivity while powering devices like IP cameras, access points, and VoIP phones.

This switch offers advanced Layer 2 management features, a total PoE budget of 130W, and easy network configuration, making it a reliable and cost-effective networking solution for small offices and surveillance systems.

Key Features

Gigabit Network Performance

The DGS-F1100-10PS provides 8 Gigabit PoE+ ports and 2 Gigabit uplink ports, ensuring fast, reliable connectivity for multiple devices simultaneously.

PoE+ Support

• 802.3af/at compliant PoE+ ports

• Maximum PoE budget: 130W

• Powers devices such as:

  • IP surveillance cameras

  • Wireless access points

  • VoIP phones

  • Other PoE-enabled network devices

Layer 2 Management Features

The switch supports essential Layer 2 features, including:

• VLAN configuration (Port-based and 802.1Q Tagged)

• Quality of Service (QoS) for traffic prioritization

• Link Aggregation (LACP)

• IGMP Snooping for efficient multicast traffic

• Port mirroring for network monitoring

Easy Network Management

Users can manage and monitor the switch via:

• Web-based GUI – intuitive interface for configuration

• Command Line Interface (CLI) – advanced control

• SNMP – network monitoring and alerts

Energy-Efficient Design

With D-Link Green technology, the DGS-F1100-10PS reduces power consumption without compromising performance, providing an eco-friendly networking solution.

Compact and Durable

The switch is compact and desktop-mountable, ideal for small offices or network cabinets while providing reliable operation for everyday business needs.

Technical Specifications

Model: DGS-F1100-10PS-E
Switch Type: Layer 2 Managed Switch

Ports

• 8 × 10/100/1000 Mbps PoE+ ports

• 2 × Gigabit uplink ports

PoE Specifications

• Standard: 802.3af/at

• Maximum PoE Budget: 130W

Performance

• Switching Capacity: 20 Gbps

• Forwarding Rate: 14.88 Mpps

VLAN & QoS

• VLAN: Port-based, 802.1Q Tagged VLAN

• QoS: 802.1p, DSCP, Port-based QoS

• Multicast: IGMP Snooping v1/v2/v3

Management Options

• Web GUI

• CLI

• SNMP

Physical Specifications

• Dimensions: 210 × 130 × 30 mm

• Weight: 1.2 kg

• Operating Temperature: 0°C to 40°C

Ideal Use Cases

The  DGS-F1100-10PS is perfect for:

• Small office networks

• IP surveillance systems

• Wireless access point deployments

• VoIP phone systems

• Powering PoE-enabled devices in compact environments
