Manufacturer: D-Link
Model: DGS-1008A
Description:

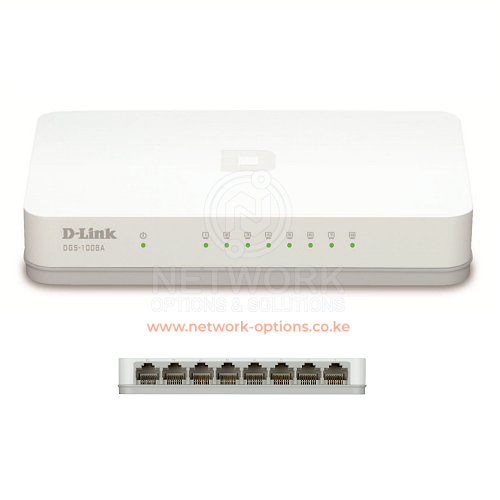

The DGS-1008A provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. An energy-efficient power adapter (Energy Star Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.
Fast and Reliable Networking
The D-Link DGS-1008A 8-Port Gigabit Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to eight PCs or other devices. The DGS-1008A also features QoS, which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. It’s stylish, easy-to-use, and comes IPv6-ready for a reliable network today and tomorrow.
Conserve Energy
The 8-Port Gigabit Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports. It also adjusts the amount of power supplied to a port according to the length of the connected Ethernet cable.
Environmentally-friendly
The 8-Port Gigabit Switch was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize the use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive
Specification
| Device Interfaces | Eight 10/100/1000 Gigabit LAN ports |
|---|---|
| Functionality | |
| Advanced Features | • Green Ethernet • 16Gbps switching fabric • Auto MDI/MDIX crossover for all ports • Secure store-and-forward switching scheme • Full/half-duplex for Ethernet/Fast Ethernet speeds • IEEE 802.3x Flow Control• Supports 9,216 Byte Jumbo Frames • Supports IEEE 802.1p QoS (4 Queues, Strict Mode) • Supports Cable Diagnostics Function |
| Protocol | • CSMA/CD |
| Data Transfer Rates | |
| Ethernet | • 10Mbps (half duplex) • 20Mbps (full duplex) |
| Fast Ethernet | • 100Mbps (half duplex) • 200Mbps (full duplex) |
| Gigabit Ethernet | • 2000Mbps (full duplex) |
| Packet Filtering/Forwarding Rates | • Ethernet: 14,880pps per port • Fast Ethernet: 148,800pps per port • Gigabit Ethernet: 1,488,000pps per port |
| Transmission Method | • Store-and-forward |
| MAC Address Learning | • Automatic Update |
| Physical & Environmental | |
| LED Indicators | • Per port: Link/Activity/Speed • Per device: Power |
| Power Consumption | • Power On (Standby): DC input: 0.59 watts, AC input: 1.5 watts • Maximum: DC input: 3.48 watts, AC input: 5.4 watts |
| Temperature | • Operating: 0 to 40°C • Storage: -10 to 70°C |
