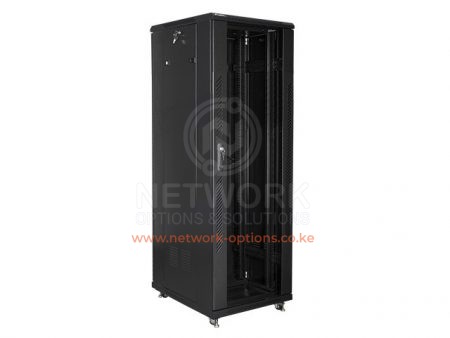

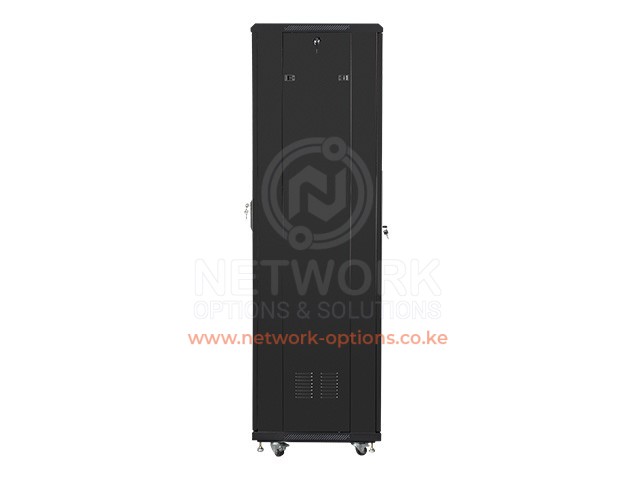

This cabinet is designed to expand networks, installation of cabling and equipment in size 19” with max. 800kg. loading capacity. It can be used in networks, server rooms, small, medium businesses and data centers which needs lot of space in cabinet for network equipments. It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance. Construction is made of high grade cold rolled steel which characterized by excellent design and high quality of craftsmanship. The cabinet allows full adjustment of the depth of the vertical mounting rails. It is equipped with front temper glass door with lock and possibility installing on right or left side. It has removable side panels (include locks) and rear solid steel door with lock. You can put the wiring through entry cable on top and bottom panels (with blank entry panels). The fan tray include 2 fans 230V. In addition, parcel includes additional accessories for rails mounts, M6 cage nuts and blank entry panels. Cabinet structure for self-assembly is in three flat packs which facilitates transport.
Specification
– Cabinet dimensions (W x D x H): 600x600x2055 mm,
– Packaging dimensions (W x D x H): Top & Bottom – 63x190x10 cm, Doors – 62x63x12.5 cm, Frame – 62x198x25.4 cm,
– Floor panel: 4 castors with brake + adjustable legs,
– Top with fan tray: 2 fans 230V in top cover,
– Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
– Material: High grade cold rolled steel, powder coated,
– Thickness: Mounting profile – 2,00mm, Others – 1,2mm – 1,5mm,
– Cable entry panel: Top, Bottom (adjustable),
– Included: Accessory bag, locks for front and rear doors and two side panels, 20 cage nuts M6.
